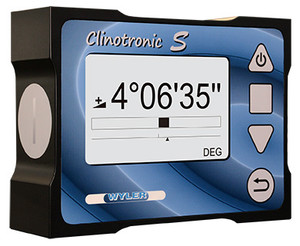

Wyler Clinotronic S Electronic Inclinometer, with Two M3 Threads on Each Side - 015-S-PG45
Clinotronic S is a precise instrument with wireless data transmission to measure inclinations of ±45 degrees.
Clinotronic S is building on the success of the Clinotronic PLUS. It keeps those features of the Clinotronic PLUS, which made it famous, like its reliability and multi-purpose capabilities - and adds latest technology to it:
- Wireless functionality
- Excellent display with low power consumption
- User friendly
- Adjusted to local gravity
- Increased accuracy
Wireless Functionality:
Clinotronic S can be connected to an Android™ or iOS™ device, which can then be used as remote display. This new feature makes the instrument much more versatile and opens new applications.
Furthermore each Clinotronic S is supplied with the wylerCONNECT MINI, a Bluetooth® USB-communication module.
The wylerCONNECT MINI allows to send data from the Clinotronic S units to a laptop. This ensures a more efficient adjustment of machines.
Data Transmission via Cable
- It goes without saying that data transmission via the USB cable to a laptop is possible as well.
Excellent Display
- The large color display with low power consumption is backlit and has a high contrast. It therefore provides excellent readability even under adverse conditions like a workshop or under a machine.
User Friendly
- The completely redesigned Man-Machine-Interface allows a very intuitive handling.
Adjusted to Local Gravity
- To ensure best possible accuracy the Clinotronic S can be adjusted to local gravity.
Software
The following software products can be used to collect data from a Clinotronic S in a laptop:
Continious measurement / monitoring:
- wylerCHART and wylerDYNAM
Simple software to insert single values directly into e.g. EXCEL:
- wylerINSERT
Calibration Certificate:
- The CLINOTRONIC S can be delivered with an internationally recognised Calibration Certificate against a surcharge
Specifications:
| Measuring Range | ±45° |
| Sensitivity | 5 arcsec, 0.020 mm/m |
| Limits of error Mw = measuring value, Temp. t=stable | 0.04% Mw / min 5 arcsec |
| Drift / h | 10 arcsec |
| Response time | <5 sec |
| Power Supply | Lithium-ion battery: 3.6 V, 3333 mAh, (12 Wh) External power: 5 V (USB-C) |
| Battery life with medium brightness of LCD screen and Bluetooth on | max 33 hours |
| Max current consumption during charging process at max brightness of LCD screen and Bluetooth activated | 500 mA, 5 V |
| Operating temperature | 0° - 40° C |
| Storage temperature | -20° - 60° C |
| IP class (with protection cap for USB-C) | IP 64 |
| Dimensions (L x W x H) | 100 x 75 x 30 mm |
| Weight | |
| Clinotronic S, including lithium-ion battery | 400 g |
| Including USB power adapter, USB cable, infrared-trigger, wylerCONNECT MINI | 850 g |
