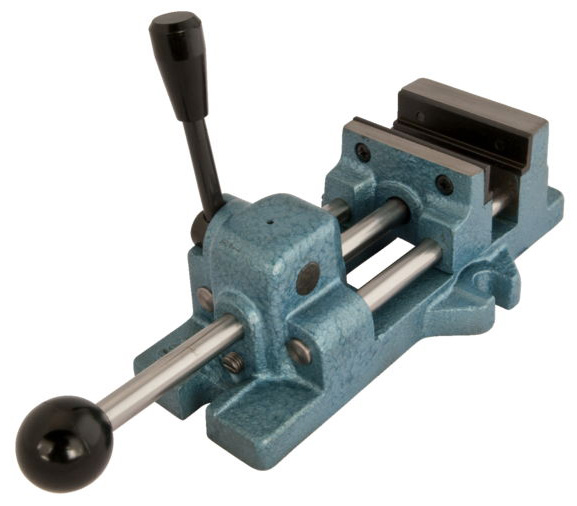

Wilton Cam Action Drill Press Vises
With the Wilton Cam Action Drill Press, a simple push or pull on the center bar knob sets the jaw in position.
Features:
- Simple push or pull on the center bar knob sets the jaw in position
- Easy press locking lever cams the jaw ahead 3/32", exerting a holding pressure that is adjustable from 400 to 1100 lbs.
- Base is designed for clear through drilling applications
- Unique top locking lever can be raised or lowered to tighten or loosen against the workpiece
Specifications:
| Item Number | 13400 | 13401 | 13402 | 13403 |
| Model Number | 1203 | 1204 | 1206 | 1208 |
| Type | Stationary | Stationary | Stationary | Stationary |
| Jaw Width (In.) | 3" | 4" | 6" | 8" |
| Opening Capacity Max (In.) | 3" | 4-11/16" | 6-3/16" | 8-3/16" |
| Jaw Depth (In.) | 1-1/4" | 1-5/16" | 1-13/16" | 2" |
| Type of Base | Stationary | Stationary | Stationary | Stationary |
For more info, visit www.p65warnings.ca.gov.
| Item Number | Description | Price | Quantity | |||
|---|---|---|---|---|---|---|
| 13401-1 | Cam Action Drill Press Vise Model 1204 | 4" | 4-11/16" | 1-5/16" | $ 250.99 | |
| 13402-1 | Cam Action Drill Press Vise Model 1206 | 6" | 6-3/16" | 1-13/16" | $ 419.99 | |
| 13403 | Cam Action Drill Press Vise Model 1208 | 8" | 8-3/16" | 2" | $ 540.99 |
