Vertex R8 3" Universal Boring & Facing Tool Set - 1001-6008
Brand: Vertex Machinery and Tools- SKU:
- 1001-6008
- ID:
- 323422
$1,695.00
Vertex R8 3" Universal Boring & Facing Tool Set
- R8 3" Universal Boring & Facing Tool Set (1001-6008)
- 0.01mm graduation.
- All parts are hardened and working surfaces are ground.
- Mechanism of the boring heads has a lubrication circuit delivering oil from two lubricators to all friction surfaces.
- Main part of the universal boring head is the body, in which the tool slide moves on dovetail guideways.

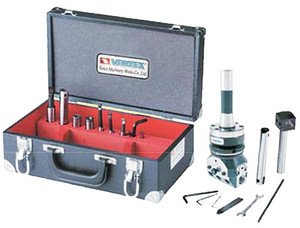

- Set includes 1 Boring Head, 1 R8 Shank, 4 Carbide Tipped Boring Bars, 1 BP-21 Adapter, 2 Adapters that hold 1/4" Square Tool Bits, 2 Clamping Sleeves, 1 Stop Rod, 1 High Speed Steel 1/4" Square Tool Bit, 3 Allen Wrenches and 1 Fitted Carrying Case.
- Overing bar hole size is 100mm.
- Boring bar hole size is 18mm.
- Center distance between holes is 23mm.
- Cross hole diameter is 18mm.
- Offset is 15mm.
- Optional NT40 shank is #3800-5951.
- Vertex # VBHU-205
- Shipping Weight: 13.2 lbs
