Value Collection 90° Angle Magnetic Aluminum V-Block, 4-3/8" x 2-3/8" x 1-7/8" - 99-943-3
Brand: Value Collection- SKU:
- 99-943-3
- ID:
- 365848
$199.95

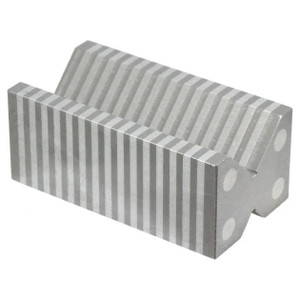

Value Collection 90° Angle Magnetic Aluminum
V-Block, 4-3/8" x 2-3/8" x 1-7/8"
1-3/4" Max Capacity, 90° Angle, Aluminum V-Block
4-3/8" Long x 2-3/8" Wide x 1-7/8" High, Sold as Individual
Magnetic Chuck V-Block
- Laminated Aluminum
- Ground on all surfaces
- Maximum transfer of magnetism when laminations are in line with magnetic chucks.
- Two Vees, large V 2" capacity, small V 1/2" cap
V-blocks are used for holding cylindrical components for detecting and inspecting. They are designed with a 90-degree channel rotated 45-degrees from the sides, forming a V-shaped channel in the top. V-Blocks are commonly available in pairs. Some come with magnets for magnetic workholding applications.
Specifications:
Type | V-Block |
Sold As | Individual |
Overall Length (Inch) | 4-3/8 |
Overall Width (Inch) | 2-3/8 |
Overall Height (Inch) | 1-7/8 |
V Angle | 90.00 |
Maximum Capacity of V (Inch) | 1-3/4 |
Material | Aluminum |
Magnetic | No |
UPC # | 679662106629 |
See all Value Collection Magnetic Chuck V-Blocks & Parallels, Laminated Aluminum
