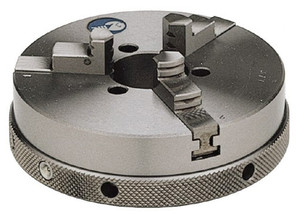

Ultra Short 3 Jaw Scroll Chuck, Type 3Z 3 Jaw 4" Dia. with Internal and External Jaws - 70-220-9
Brand: None- SKU:
- 70-220-9
- ID:
- 98868
$2,690.11
Ultra Short 3 Jaw Scroll Chuck
Type 3Z 3 Jaw 4" Dia.
with Internal and External Jaws
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Forged steel or steel chucks have greater accuracy, less wear and can be operated at higher RPM's.
Type 3Z 3 Jaw 4" Dia.
with Internal and External Jaws
| Item Number | 70-220-9 |
| Outside diameter over knurled clamping ring | 4-1/2" |
| Height of chuck | 15/16" |
| Jaw height | 21/32" |
| Jaw width | 15/32" |
| Center hole | 1-1/4" |
| Mounting flange dia. | 1.969" |
| Height of flange | 5/32" |
| I.D. Clamping capacity | 7/8" - 3-3/4" |
| O.D. Clamping capacity | 0 - 4-1/8" |
| Weight | 5 lbs. |
