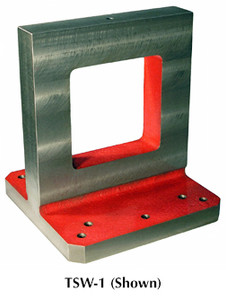

Suburban Window Type Tombstone Fixture - TSW-1
Brand: Suburban Tool Inc.-Taft Peirce Metrology- SKU:
- TSW-1
- ID:
- 328377
| A | 400mm |
| B | 1-3/4" |
| C | 18" |
| D | 3" |
| E | 6.30" |
| F | 9-1/4" |
| G | 9-1/4" |
| Weight | 245 lbs. |
$3,995.00
Suburban Window Type Tombstone Fixture - TSW-1
- Pallet fixtures, also known as tombstones, tombstone fixtures or tooling blocks, provide an accurate base for mounting tooling and fixture plates.
- Allows for front and back machining of parts.
- Made from one-piece, class 40 cast iron that has been stress-relieved.
- DIN mounting standard, JIS mounting optional.
- Base and sides milled flat, parallel, and square to 0.001" in 12".
- A large number of standard size castings in stock.
- 5/8"-11" tapped lifting holes standard.
