TMX Milling Machine Arbor, 41-B20-3 - 8-360-B015
Brand: TMX- SKU:
- 8-360-B015
- ID:
- 350122
$623.03
TMX Milling Machine Arbor, 41-B20-3 - 8-360-B015
- Style "B" Milling machine arbors are made of top quality one piece forgings
- Carefully heat treated and ground surfaces with extremely narrow tolerances assure a rigid setup and accurate machining operations
- All external threads are ground
- Arbors are equipped with assorted width of solid spacers and the necessary running bushings with standard keyways and threaded arbor nut
Draw Bar Threads:
- #30 1/2" - 13
- #40 5/8" - 11
- #50 1"-8

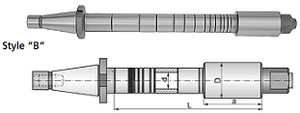

| Item No. | 8-360-B015 |
| Taper | 40 |
| Arbor No. | 41-B20-3 |
| Arbor Dia. d | 1" |
| Length L | 20" |
| Running Bushing D x a | 1-7/8" x 3-1/8" |
| No. of Bushings | 1 |
