TMX Milling Machine Arbor, 41-1/4-B3 - 8-360-B017
Brand: TMX- SKU:
- 8-360-B017
- ID:
- 350123
$267.74
TMX Milling Machine Arbor, 41-1/4-B3 - 8-360-B017
- Style "B" Milling machine arbors are made of top quality one piece forgings
- Carefully heat treated and ground surfaces with extremely narrow tolerances assure a rigid setup and accurate machining operations
- All external threads are ground
- Arbors are equipped with assorted width of solid spacers and the necessary running bushings with standard keyways and threaded arbor nut
Draw Bar Threads:
- #30 1/2" - 13
- #40 5/8" - 11
- #50 1"-8

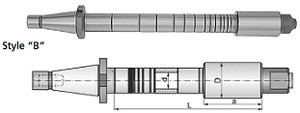

| Item No. | 8-360-B017 |
| Taper | 40 |
| Arbor No. | 41-1/4-B3 |
| Arbor Dia. d | 1-1/4" |
| Length L | 3" |
| Running Bushing D x a | - |
| No. of Bushings | - |
For More TMX Milling Machine Arbors - Style B Click Here
