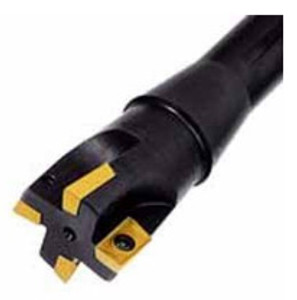

TMX Indexable End Mill, R-8 Shank, 2-1/2" Dia. - 6-941-125
Brand: TMX- SKU:
- 6-941-125
- ID:
- 162986
| Shank Size | R-8 |
| Diameter | 2-1/2" |
| Overall Length L | 6.125" |
$359.95
TMX Indexable End Mill
R-8 Shank, 2-1/2" Dia.
6-941-125
APX-D2.50-R8-6.1-6-16.
2-1/2in 90° R-8 Shank End Mill for APKT 16 Inserts
Features:
- Reduces cutting forces
- Maximum rigidity
- Forged steel body
Cutters are provided with 1 Torx Key and set of locking Screws.
Inserts are sold separately.
** No. KPA-503K 10 Pack of Inserts
Technical Data:
| Diameter D | 2-1/2" | |
| Shank | R8 | |
| Overall Length L | 6.125 | |
| Cutting Length l | 1.953 | |
| Shank Diameter d | R8 | |
| Depth of Cut a | 5/8" | |
| No. of Inserts | 6 | |
| Insert | APKT 1604, APXT 1604 | |
| Cutting Rake Angle | -8 | |
| Axial Rake Angle | 6,8,6,8,6,8 | |
| Radial Rake Angle | -8 | |
| Tolerances | ||
| Tolerance: DØ = | mm | +0.0/-0.1 mm |
| Tolerance: dØ = | mm | +0.0/-0.002 mm |
| Tolerance: L = | mm | +/-0.5 mm |
| Tolerance: Roundness/Taper = | mm | +/-0.5 mm |
| Spare Parts | ||
| Insert Screw | 6-998-4011 | |
| Torx Key | T15 | 6-998-215 |
| Anti Seize Lube | 290-ASEIZE-03 | |
