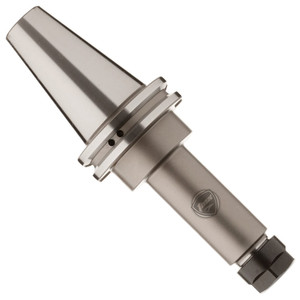

TMX ER25 Collet Chuck, CAT50, 10" Gage Length - 8-100-5064
Brand: TMX- SKU:
- 8-100-5064
- ID:
- 345629
| Collet Type | ER25 |
| CAT Type | CAT 50 |
| Gage Length (L1) | 10" |
| Nut OD (D1) | 42mm / 1.65" |
$289.60
TMX ER25 Collet Chuck, CAT50, 10" Gage Length
8-100-5064
CAT50 Collet Holder AD/B ER25 x 10"
TMX CAT50 Collet Holder
ER25 Collet x 10" Gage Length
Balanced to 15000 RPM at G6.3
DIN AD/B Coolant Feeding Feature
Features:
- Balanced and certified to 15,000 RPM/G6.3
- TMX DIN AD/B design as standard. AD is coolant through the spindle; B is coolant through the flange
- Constructed of Alloy Steel for long, durable service life
- Hardened to RC 57-59 to avoid damaging collet chuck threads
- Machined and shot blast exterior for surface integrity
- Accepts ER collets
- QA Lab inspected for dimensional accuracy
- Individual balance certification included
Dimensional Information:
- Collet seat taper T.I.R. ≤ 0.0002"
- Draw bar thread for CAT 40 = 5/8-11, CAT 50 = 1"-8
- ANSI B5.50-1994
- AT3 taper accuracy for excellent holder / spindle engagement
Specifications:
| Item Number | 8-100-5064 |
| Item Type | CAT50 Collet Holder |
| Collet Type | ER25 |
| Gage Length (L1) | 10" |
| Nut OD (D1) | 42mm |
| Clamping Range | 1/16 - 5/8 |
| Nut Style | Slotted |
| Nut Thread | M32 x 1.5 |
| Adjusting Screw Size | 11/16-16 x 1/2" |
| Flange Screw Size | M5 x .8 x 5mm |
| Balanced | G6.3/15,000 |
| Coolant | AD/B |
| Flange Screw Part Number | 8-815-185 |
| Nut Part Number | 8-800-025 |
| Wrench Part Number | 8-810-025 |
| Adjusting Screw Part Number | 8-815-025 |
