TMX CAT50 End Mill Holders

TMX CAT50 End Mill Holders

Brand:   TMX
ID:
348843
callling
Current Stock:

TMX

TMX CAT50 End Mill Holders

Features:

  • Flange Screws: M5 x .8 x 5mm long = 8-815-185
  • Balanced and certified to 15,000 RPM/G6.3
  • TMX DIN AD/B design as standard. AD is coolant through the spindle; B is coolant through the flange
  • Will accommodate single and double ended end mills
  • Low harmonic vibration increases tool life and improves surface finish
  • Machined and shot blast exterior for surface integrity

Dimensional Information:

  • AT3 taper accuracy for excellent holder / spindle engagement
  • Draw bar thread for CAT 50 = 1" -8
  • ANSI B5.50-1994
  • H5 inside diameter tolerance
  • Maximum run out is .0002”(.005mm) TIR for concentric machining


Specifications:

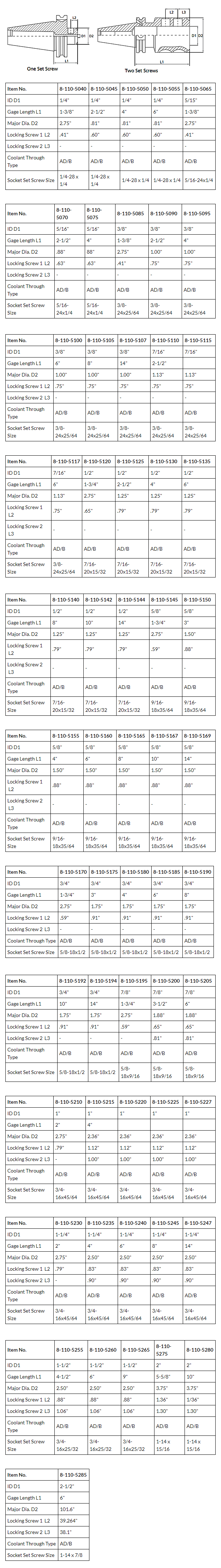

View the Specifications Tables

Enter any Item Number below into the search box to see additional specifications.


For Replacement Part Information CLICK HERE

For TMX CAT40 End Mill Holders Click Here

Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.

Item Number Description Price Quantity
8-110-5227 TMX CAT50 End Mill Holder, 1" x 14" $ 762.93
8-110-5210 TMX CAT50 End Mill Holder, 1" x 2" $ 135.13
8-110-5215 TMX CAT50 End Mill Holder, 1" x 4" $ 145.11
8-110-5220 TMX CAT50 End Mill Holder, 1" x 6" $ 166.37
8-110-5225 TMX CAT50 End Mill Holder, 1" x 9" $ 194.90
8-110-5255 TMX CAT50 End Mill Holder, 1-1/2" x 4-1/2" $ 155.44
8-110-5265 TMX CAT50 End Mill Holder, 1-1/2" x 9" $ 229.35
8-110-5247 TMX CAT50 End Mill Holder, 1-1/4" x 14" $ 808.09
8-110-5230 TMX CAT50 End Mill Holder, 1-1/4" x 2" $ 131.91
8-110-5235 TMX CAT50 End Mill Holder, 1-1/4" x 4" $ 145.11
8-110-5245 TMX CAT50 End Mill Holder, 1-1/4" x 8" $ 185.38
8-110-5120 TMX CAT50 End Mill Holder, 1/2" x 1-3/4" $ 128.10
8-110-5142 TMX CAT50 End Mill Holder, 1/2" x 10" $ 299.47
8-110-5144 TMX CAT50 End Mill Holder, 1/2" x 14" $ 762.93
8-110-5135 TMX CAT50 End Mill Holder, 1/2" x 6" $ 166.37
8-110-5140 TMX CAT50 End Mill Holder, 1/2" x 8" $ 202.91
8-110-5040 TMX CAT50 End Mill Holder, 1/4" x 1-3/8" $ 128.10
8-110-5045 TMX CAT50 End Mill Holder, 1/4" x 2-1/2" $ 128.10
8-110-5050 TMX CAT50 End Mill Holder, 1/4" x 4" $ 145.11
8-110-5055 TMX CAT50 End Mill Holder, 1/4" x 6" $ 178.26
8-110-5280 TMX CAT50 End Mill Holder, 2" x 10" $ 322.05
8-110-5275 TMX CAT50 End Mill Holder, 2" x 5-5/8" $ 224.36
8-110-5285 TMX CAT50 End Mill Holder, 2-1/2" x 6" $ 277.49
8-110-5170 TMX CAT50 End Mill Holder, 3/4" x 1-3/4" $ 128.10
8-110-5192 TMX CAT50 End Mill Holder, 3/4" x 10" $ 291.15
8-110-5194 TMX CAT50 End Mill Holder, 3/4" x 14" $ 740.36
8-110-5180 TMX CAT50 End Mill Holder, 3/4" x 4" $ 145.11
8-110-5185 TMX CAT50 End Mill Holder, 3/4" x 6" $ 166.37
8-110-5190 TMX CAT50 End Mill Holder, 3/4" x 8" $ 202.91
8-110-5085 TMX CAT50 End Mill Holder, 3/8" x 1-3/8" $ 128.10
8-110-5107 TMX CAT50 End Mill Holder, 3/8" x 14" $ 762.93
8-110-5095 TMX CAT50 End Mill Holder, 3/8" x 4" $ 145.11
8-110-5100 TMX CAT50 End Mill Holder, 3/8" x 6" $ 166.37
8-110-5105 TMX CAT50 End Mill Holder, 3/8" x 8" $ 202.91
8-110-5065 TMX CAT50 End Mill Holder, 5/16" x 1-3/8" $ 128.10
8-110-5070 TMX CAT50 End Mill Holder, 5/16" x 2-1/2" $ 128.10
8-110-5075 TMX CAT50 End Mill Holder, 5/16" x 4" $ 145.11
8-110-5145 TMX CAT50 End Mill Holder, 5/8" x 1-3/4" $ 128.10
8-110-5167 TMX CAT50 End Mill Holder, 5/8" x 10" $ 291.15
8-110-5169 TMX CAT50 End Mill Holder, 5/8" x 14" $ 740.36
8-110-5160 TMX CAT50 End Mill Holder, 5/8" x 6" $ 166.37
8-110-5165 TMX CAT50 End Mill Holder, 5/8" x 8" $ 202.91
8-110-5110 TMX CAT50 End Mill Holder, 7/16" x 2-1/2" $ 128.10
8-110-5115 TMX CAT50 End Mill Holder, 7/16" x 4" $ 145.11
8-110-5117 TMX CAT50 End Mill Holder, 7/16" x 6" $ 166.37
8-110-5195 TMX CAT50 End Mill Holder, 7/8" x 1-3/4" $ 128.10
8-110-5200 TMX CAT50 End Mill Holder, 7/8" x 3-1/2" $ 145.11
8-110-5205 TMX CAT50 End Mill Holder, 7/8" x 6" $ 166.37
