TMX 3-Jaw Front Mount Scroll Chuck with 2pc Jaws, 5" Size - 3-813-0500P

TMX 3-Jaw Front Mount Scroll Chuck with 2pc Jaws
5" Size - 3-813-0500P

3-Jaw (Two Piece) Precision Forged Steel Scroll Chuck
Front Mount Plain Back, 5in
TMX by Toolmex MADE IN EUROPE

Compare to Bison® Models 3274, 3275 & 3575
Series 7-811, 7-812 & 7-813

Features:

• Available with 2-Piece or Solid Jaws
• Can be mounted directly on 3/6 slot rotary tables or on a base plate when the rotary table has 3/6 or 4/8 T-slots
• Base plates are designed for use with all rotary tables and other devices where back mounting chucks cannot be used
• These chucks can also be mounted to a rough machined backplate, but will require machining of bolt hole patterns and projections for finished assembly

Standard Accessories:

• 2pc Jaw Chucks: 1 set each Hard Master and Reversible Hard Top Jaws
• Solid Jaw Chucks: 1 set each Solid ID and OD Jaws
• 1 Chuck wrench
• 1 Set of mounting bolts
• Eye bolts for chuck sizes 16" and larger

Optional Accessories:

• Soft Top Jaws
• Backplates
• Rotating Bodies

Technical Data:

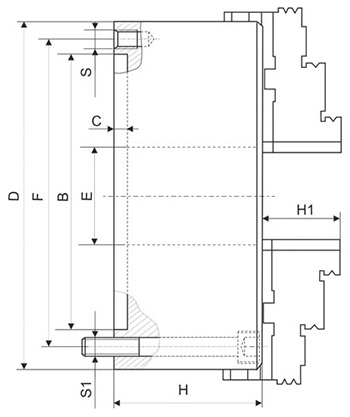

Selling Unit   EA Chuck Type   Scroll Chuck Size in 5 Body Material   Forged Steel Number of Jaws   3 Jaw Type   Two-Piece Weight lb 11 Mount Type   Back&Front Gripping Force daN 2400 Max RPM RPM 5500   Diameter D in 4.921 Recess Diameter B in 3.740 Recess Depth C in 0.158 Hole Diameter E in 1.260 Bolt Circle F in 4.252 Body Height H in 2.205 Jaw Height H1 (Two-piece Jaws) in 1.575 Hole Tread Size S   3xM8 Bolt Thread Size S1   3xM8   d1 Two-Piece Jaws in 0.118 - 1.97 d2 Two-Piece Jaws in 2.05 - 3.78 d3 Two-Piece Jaws in 3.74 - 4.92 d4 Two-Piece Jaws in 1.34 - 2.99 d5 Two-Piece Jaws in 2.95 - 4.65

See all TMX 3-Jaw Front Mount Scroll Chucks with 2pc Jaws
