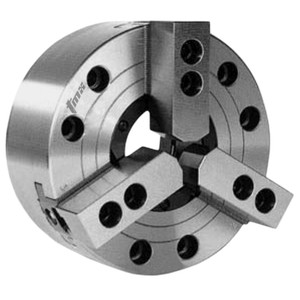

TMX 3-Jaw Extra Large Hole Power Chuck, Direct Mount A2-6, 8 inch - 3-771-0860
Brand: TMX- SKU:
- 3-771-0860
- ID:
- 184997
$2,542.00
TMX 3-Jaw Extra Large Hole Power Chuck, Direct Mount A2-6, 8 inch - 3-771-0860
3-Jaw Extra Large Hole Power Chuck, Direct Mount A2-6, 8 inch, TMX Workholding Solutions by Toolmex
Technical Data:
| Chuck Dia | in | 8 |
| Spindle Nose | A2-6 | |
| Thru Hole | in | 2.5984 |
| Jaw Stroke | in | 0.2992 |
| Plunger Stroke | in | 0.7087 |
| Gripping Dia Max | in | 8.2677 |
| Gripping Dia Min | in | 0.4331 |
| Max Permissible Input Force | lbf | 8598 |
| Max Gripping Force | lbf | 21159 |
| Max Speed | RPM | 5000 |
| Weight | lb | 52 |
| Moment of Inertia | lb*ft2 | 0.1454 |
| A | in | 8.2677 |
| B | in | 4.3701 |
| C | in | 6.6929 |
| D | in | 4.1880 |
| E | in | 1.0236 |
| F | in | 0.1969 |
| G | in | 5.9055 |
| K | 6-M12 | |
| L | in | 0.8268 |
| M | in | 0.9843 |
| N max | in | 1.8189 |
| N min | in | 1.6693 |
| O max | in | 0.9154 |
| O min | in | 0.4035 |
| P max | in | 1.2992 |
| P min | in | 0.5906 |
| H | in | 5.250 |
| J | in | 2.5984 |
| Q | in | 1.5354 |
| R | in | 0.5512 |
| S | in | 0.8071 |
| T | in | 0.0787 |
| U max | M80x2 | |
| V | 6-M12 | |
| W | in | 3.4646 |
| X | in | 1.1811 |
| Y | in | 1.5354 |
| Z | in | 3.7402 |
