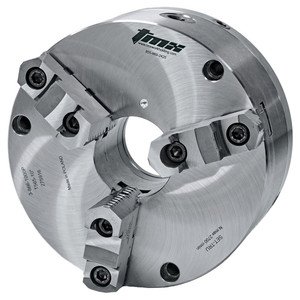

TMX 3-Jaw (2pc) SET-TRU™ Self-Centering Scroll Chucks with Fine Adjustment

TMX 3-Jaw (2pc) SET-TRU™ Self-Centering Scroll Chucks with Fine Adjustment

3-Jaw SET-TRU™ Forged Steel Body Scroll Chuck
with Two-Piece Hard Reversible Jaws

Plain Back

TMX by Toolmex MADE IN EUROPE
(Compare to Bison® Models 3564 & 3565 - series 7-866)

Designed for Performance

• Outstanding accuracy and quality, our solid steel body SET-TRU™ chucks can be used for all machining where standard scroll chucks are used, along with applications where tighter tolerances are required.
• Chuck bodies hardened to 28 HRC, jaws hardened to 50 HRC, 4 micro adjustment screws for fine adjustment, and 0.0006" TIR repeatability make for a very rigid, reliable and accurate system.
• Due to the increased rigidity, accuracy and optimal wear behavior, our chucks can handle rough as well precision machining demands while extending the life of cutting tools and machines.

Features:

• 0.0006" T.I.R. Repeatability
• SET-TRU™ features fine adjustment with 4 micro adjustment screws for outstanding repeatability
• 16", 20" and 25" diameter chucks with 3 jaws and 6 jaws use 8 micro adjustment screws achieving extremely high gripping concentricity

Standard Accessories:

• 1 Set of hard master jaws
• 1 Set of hard top reversible jaws
• 1 Chuck wrench
• 1 Set of mounting bolts
• 1 Set of fine adjustment screws
• Eye bolts for chuck sizes 16" and larger

Optional Accessories:

• TMX Fully Machined Type D1 Steel Backplates for SET-TRU Chucks
• TMX Fully Machined Type A Steel Backplates for SET-TRU Chucks

Enter any Item Number into the search box to see additional specifications.
