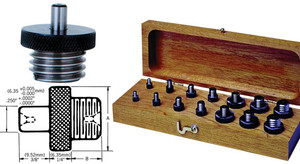

TE-CO Tapped Hole Location Gages & Sets
- Hardened and precision ground
- Shaft diameter .250" + .0002" x 3/8" long, 6.35mm + 0.005mm x 3/8" long
- All diameters concentric within .0002" T.I.R.
- Right hand thread
Gage Sets:
10308 - 14 pc. Gage Set - 2 each of 10-24 thru 5/8-11 N.C.
Threads: 10-24, 1/4-20, 5/16-18, 3/8-16, 7/16-14, 1/2-13, 5/8-11
10316 - 14 pc. Gage Set - 2 each of 10-32 thru 5/8-18 N.F.
Threads: 10-32, 1/4-28, 5/16-24, 3/8-24, 7/16-20, 1/2-20, 5/8-18
10323 - 12 pc. Gage Set - 2 each of 2-56 thru 8-32 N.C.
Threads: 2-56, 4-40, 5-40, 6-32, 8-32
For more info, visit www.p65warnings.ca.gov.
| Item Number | Description | Price | Quantity | |||
|---|---|---|---|---|---|---|
| 10301 | Tapped Hole Location Gage | 5/16" | 10-32 | .250 | $ 159.95 | |
| 10302 | Tapped Hole Location Gage | 3/8" | 1/4-20 | .250 | $ 159.95 | |
| 10303 | Tapped Hole Location Gage | 1/2" | 5/16-18 | .250 | $ 169.95 | |
| 10304 | Tapped Hole Location Gage | 1/2" | 3/8-16 | .250 | $ 169.95 | |
| 10305 | Tapped Hole Location Gage | 7/8" | 7/16-14 | .250 | $ 169.95 | |
| 10306 | Tapped Hole Location Gage | 7/8" | 1/2-13 | .250 | $ 169.95 | |
| 10307 | Tapped Hole Location Gage | 7/8" | 5/8-11 | .250 | $ 169.95 | |
| 10309 | Tapped Hole Location Gage | 5/16" | 10-32 | .250 | $ 199.95 | |
| 10310 | Tapped Hole Location Gage | 3/8" | 1/4-20 | .250 | $ 199.95 | |
| 10311 | Tapped Hole Location Gage | 1/2" | 5/16-24 | .250 | $ 199.95 | |
| 10312 | Tapped Hole Location Gage | 1/2" | 3/8-24 | .250 | $ 199.95 | |
| 10313 | Tapped Hole Location Gage | 7/8" | 7/16-20 | .250 | $ 199.95 | |
| 10315 | Tapped Hole Location Gage | 7/8" | 5/8-18 | .250 | $ 199.95 | |
| 10317 | Tapped Hole Location Gage | 5/16" | 2-56 | .250 | $ 201.60 | |
| 10318 | Tapped Hole Location Gage | 5/16" | 4-40 | .250 | $ 199.95 | |
| 10319 | Tapped Hole Location Gage | 5/16" | 5-40 | .250 | $ 199.95 | |
| 10320 | Tapped Hole Location Gage | 5/16" | 6-32 | .250 | $ 199.95 | |
| 10321 | Tapped Hole Location Gage | 5/16" | 6-40 | .250 | $ 199.95 | |
| 10322 | Tapped Hole Location Gage | 5/16" | 8-32 | .250 | $ 199.95 | |
| 10330 | Tapped Hole Location Gage | 1" | 3/4-10 | .250 | $ 202.00 | |
| 10308 | 14 pc. Gage SET | | | | $ 2,026.00 | |
| 10316 | 14 pc. Gage SET | | | | $ 2,204.00 | |
| 10323 | 12 pc. Gage SET | | | | $ 2,087.00 | |
| 11101 | Tapped Hole Location Gage | 7.95 mm | 1.6 x .35 mm | 6.35 mm | $ 199.95 | |
| 11103-1 | Tapped Hole Location Gage | 7.95 mm | 2.0 x .40 mm | 6.35 mm | $ 199.95 | |
| 11105-1 | Tapped Hole Location Gage | 7.95 mm | 2.5 x .45 mm | 6.35 mm | $ 199.95 | |
| 11107 | Tapped Hole Location Gage | 7.95 mm | 3.0 x .50 mm | 6.35 mm | $ 199.95 | |
| 11109 | Tapped Hole Location Gage | 7.95 mm | 4.0 x .70 mm | 6.35 mm | $ 199.95 | |
| 11111-2 | Tapped Hole Location Gage | 9.53 mm | 5.0 x .80 mm | 6.35 mm | $ 199.95 | |
| 11113-1 | Tapped Hole Location Gage | 9.53 mm | 6.0 x 1.00 mm | 6.35 mm | $ 199.95 | |
| 11121-1 | Tapped Hole Location Gage | 12.7 mm | 8.0 x 1.25 mm | 6.35 mm | $ 199.95 | |
| 11123-1 | Tapped Hole Location Gage | 12.7 mm | 10 x 1.50 mm | 6.35 mm | $ 199.95 | |
| 11125-1 | Tapped Hole Location Gage | 22.23 mm | 12 x 1.75 mm | 6.35 mm | $ 199.95 | |
| 11127-1 | Tapped Hole Location Gage | 22.23 mm | 16 x 2.00 mm | 6.35 mm | $ 199.95 | |
| 11129-1 | Tapped Hole Location Gage | 25.4 mm | 20 x 2.50 mm | 6.35 mm | $ 199.95 |
