Tap Associates Inc. Tap Extension Set of 5, #0 to 1/4", 4" Length - 74-750-1
Brand: Tap Associates Inc.- SKU:
- 74-750-1
- ID:
- 170814
| Model | |
| OAL | 4" |
| Tap Size | #0 to 1/4" |
| Max Extension Dia A | |
| Max Tap Shank B | |
| Max Tap Square C | |
$339.72

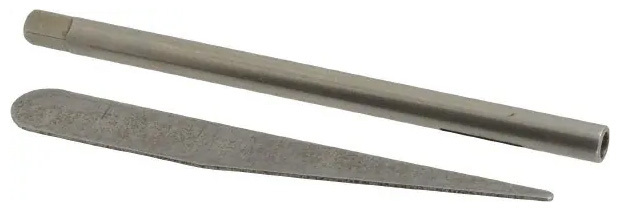

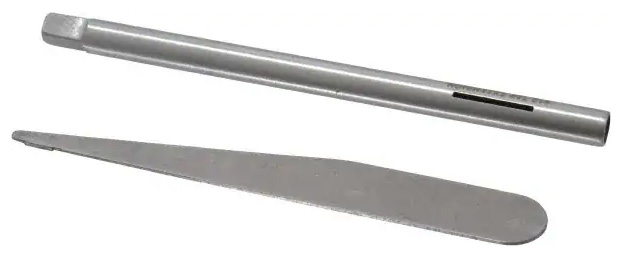

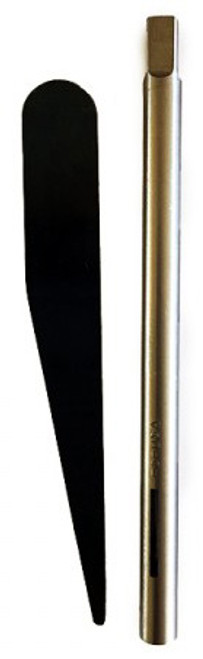

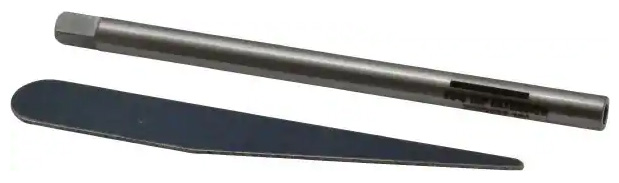

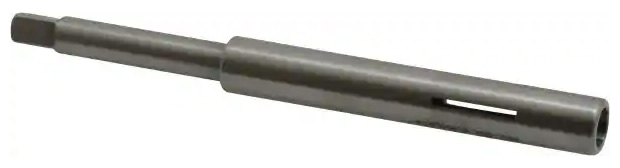

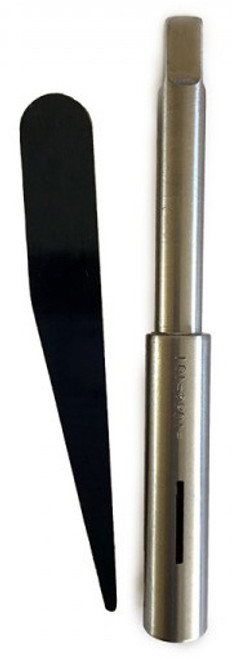

Tap Associates Inc. Tap Extension Set of 5
#0 to 1/4", 4" Length
For machine or hand tapping applications
Features:
- No set screws, collars, or collets required!
- Minimal shank diameters for close quarter tapping
- Patented, for use with all standard shank machine and hand taps
Specifications:

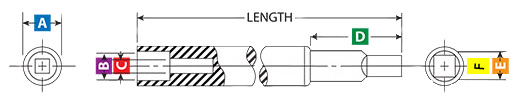

| Item Number | 74-761-8 | 74-762-6 | 74-763-4 | 74-764-2 | 74-765-9 |
| Model | 1014 | 1024 | 1034 | 1044 | 1054 |
| Tap Size | #0 - 6 | #8 | #10 | #12 | 1/4" |
| Overall Length | 4" | 4" | 4" | 4" | 4" |
| Maximum Extension Diameter (A) | 0.250" | 0.250" | 0.250" | 0.312" | 0.375" |
| Maximum Tap Shank Accepted (B) | 0.141" | 0.168" | 0.194" | 0.220" | 0.255" |
| Maximum Tap Square Accepted (C) | 0.110" | 0.131" | 0.152" | 0.165" | 0.191" |
| Length of Small Shank of Extension (D) | - | - | - | 1.5 | 1.5 |
| Diameter of Small Shank of Extension (E) | - | - | - | 0.22 | 0.255 |
| Square Shank of Extension (F) | 0.191" | 0.191" | 0.191" | 0.165" | 0.191" |
