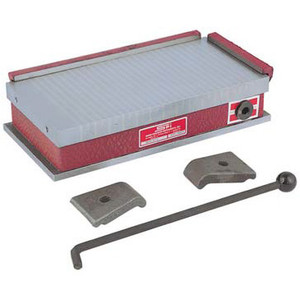

Suburban Rectangular Magnetic Chuck, Standard Pole, 15-1/2" x 10" - MCB-1015

Suburban Rectangular Magnetic Chuck MCB-1015
Standard Pole, 15-1/2" x 10" x 2-5/8"

Permanent Magnetic Surface Grinder Chucks

STANDARD POLE: 1/4" poles and 1/8" separators produce deep flux lines for holding large and thick parts.

FINE POLE (marked -FP): 1/8" poles and 1/8" separators produce shallow flux lines for holding small and thin parts.

Features:

• Made in U.S.A.
• Ideal for use on surface grinders.
• Permanent, ceramic magnets for superior holding power, never lose their strength.
• Sealed against dirt and liquids.
• Front-mounted handle is removable to eliminate interference.
• Handle, back rail, side rail and two clamps included.
• 8" x 15" models & larger have a non-removable handle.
• Top plate is laminated from steel and stainless steel, furnace brazed into one solid piece and precision ground.
• All models are lubricated, sealed against dirt and liquids.
• The smaller units can be used as Parallel Chucks on top of any regular magnetic machine chuck.
• "Partial-On" for holding parts prone to distortion.
• One end rail and one backrail plus 2 universal hold-down clamps included.
• Standard Pole Spacing for holding large and thick workpieces.
• Fine Pole Spacing for holding thin workpieces.

Specifications:
