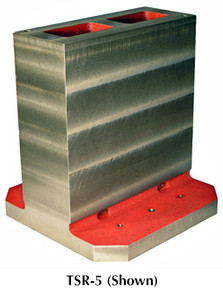

Suburban Rectangular Column Tombstone Fixture - TSR-5
Brand: Suburban Tool Inc.-Taft Peirce Metrology- SKU:
- TSR-5
- ID:
- 328397
| A | 500mm |
| B | 2-1/4" |
| C | 22" |
| D | 7.87" |
| E | 500mm |
| F | 2-1/4" |
| G | 4.92" |
| H | 4.92" |
| Weight | 840 lbs. |
$4,027.05
Suburban Rectangular Column Tombstone Fixture - TSR-5
- Pallet fixtures, also known as tombstones, tombstone fixtures or tooling blocks, provide a solid base for mounting vises, fixtures or sub-plates.
- Made from one-piece, class 40 cast iron.
- Base and sides milled flat, parallel & square to 0.001" in 12".
- DIN mounting standard, JIS mounting optional.
- All have drilled and tapped lifting holes in the top surface and coolant drain holes at the base of the column.
- Available standard as plain milled or custom made with your own hole pattern.
- A large number of standard size castings in stock.
- 5/8"-11" tapped lifting holes standard.
