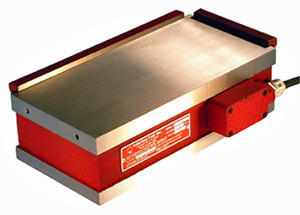

Suburban Electromagnetic Sine Plate Chucks
Brand: Suburban Tool Inc.-Taft Peirce Metrology- ID:
- 424202
Suburban Electromagnetic Sine Plate Chucks
- SineSet® Series: S2
- Designed to bolt directly, with little or no indicating, to a SineSet® sine plate or compound sine plate of the same size & series.
- Top plates are laminated from 1/8" steel & 1/16" stainless steel, then furnace-brazed to form one solid piece.
- All units are sealed against dirt & liquids.
- Longitudinal (lengthwise) or transverse (crosswise) poles are available, based on the size & shape of the part being held.
- Chuck controls must be used with all electromagnetic chucks!
- Two rails are included with each chuck.
- Made in the U.S.A.
| Item N0. | Poles | Square & Parallel | Watts |
| EMC-612-T-S2 | Transverse | 0.0003" | 72 |
| EMC-618-T-S2 | Transverse | 0.0004" | 130 |
| EMC-1218-T-S2 | Transverse | 0.0005" | 225 |
| EMC-1224-T-S2 | Transverse | 0.0005" | 280 |
| EMC-612-L-S2 | Longitudinal | 0.0003" | 75 |
| EMC-618-L-S2 | Longitudinal | 0.0004" | 117 |
| EMC-1218-L-S2 | Longitudinal | 0.0005" | 225 |
| EMC-1224-L-S2 | Longitudinal | 0.0005" | 310 |
