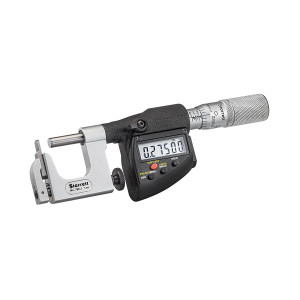

Starrett Electronic Multi-Anvil Micrometer, 0-1", EDP 72859 - 790.1AFL-1

Starrett Electronic Multi-Anvil Micrometer, 0-1", EDP 72859 - 790.1AFL-1

Digital Multi-Anvil Micrometer, Friction Thimble, Round and Flat Anvil, SPC Output, .00005", 0-1" Range

The Starrett 790.1 Series Electronic Multi-Anvil Micrometer is a full-featured precision measuring tool built with customary Starrett quality and workmanship. The 790.1 series includes a large, easy-to-read, high-contrast LCD digital readout for clear readings. Equipped with easily interchangeable anvils that provide a full range of measurement of 1" or 25mm, this micrometer is flexible and versatile, making it a popular choice in machine or automotive repair shops. Its no-glare satin chrome finish minimizes annoying surface glare under bright lights indoors or filters out UV light. This model features 0.00005" & 0.001mm resolution and 0-1" & 0-25mm measuring range. Starrett electronic micrometers guarantee a precise measurement at every position each and every time. 0-1" (0-25mm) Range, without Case.

Features

• Starrett no-glare satin chrome finish on thimble and sleeve
• Large, easy-to-read .275 (7mm) high contrast LCD digital readout
• Extremely hard and stable one-piece spindle
• Auto Off after 20 minutes of nonuse
• Inch/millimeter conversion on English versions
• Smooth friction thimble for uniform pressure
• Measurement HOLD button
• Zero at any position
• Retain and return to true zero reading
• Spindle lock
• Data Output
• Resolution: .00005" (0.001mm)
• Accuracy +/-.0001 (+/-.002mm)
• PRESET button to install any reading at any position
• Ability to install minimum and maximum limits
• Download 2-Dimensional drawing here

Specifications

• Micrometer Type: Electronic Multi-Anvil Micrometer

• Range (in): 0-1"

• Range (mm): 0-25mm

• Resolution (in): .00005"

• Resolution (mm): 0.001mm

• Anvil/Spindle Material: Steel

• Anvil Type: Round and Flat

• Spindle Type: Flat

• Lock Nut Type: Knurled Ring Type

• Thimble Type: Friction

• SPC Output: SPC Output

See all Starrett 790 Electronic Multi-Anvil Micrometers
