LCD Outside Micrometer, Friction Thimble, Carbide Anvil, SPC Output, SLC, .00005" Res., 0-1" Range

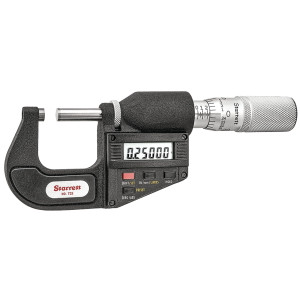

The Starrett 733 Electronic Micrometer with Output is a full-featured precision measuring tool built with customary Starrett quality and workmanship. It includes output capability for data transmission. The 733 series includes a large, easy-to-read, high-contrast LCD digital readout for clear readings. With its automatic OFF functionality, smooth friction thimble for uniform pressure, and balanced frame design, Starrett products provide comfortable and accurate measuring. Its electronic micrometers guarantee a precise measurement at every position each and every time. 0-1" Range, .00005" Resolution, with Case. With Standard Letter of Certification.

FEATURES

• Balanced frame design for comfortable and accurate measuring

• SPC Output

• Large, easy-to-read, high-contrast LCD digital readout

• Starrett No-glare satin chrome finish on thimble and sleeve minimizes annoying surface glare under bright lights indoors or filters out UV light

• No-glare black wrinkle finish on frame

• Hard and stable one-piece friction thimble permits one-hand operation of micrometer and uniform contact pressure

• Inch/millimeter metric conversion provides simple, universal, standardized unit of measurement at any position

• Ring-type knurled lock nut for quick and sure locking

• Micro-lapped carbide measuring faces
• Download 2-Dimensional drawing here

SPECIFICATIONS

• Micrometer Type: Outside
• Range (in): 0-1"
• Range (mm): 0-25.4mm
• Resolution (in): .00005"
• Resolution (mm): 0.001mm
• Anvil/Spindle Material: Carbide
• Anvil Type: Flat
• Spindle Type: Flat
• Lock Nut Type: Knurled Ring Type
• Thimble Type: Friction
• Thimble Graduations: English
• Display Type: LCD
• SPC Output: Yes
• Accuracy (in): +/-.0001"
• Accuracy (mm): +/-.003mm
