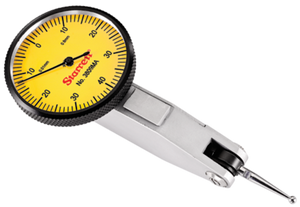

Starrett Dial Test Indicator with Dovetail Mount, EDP 12334 - 3809MA

Starrett Dial Test Indicator with Dovetail Mount, EDP 12334 - 3809MA

The Starrett 3809 precise, high quality test indicator offers a full complement of standard features. Indicator includes two dovetail clamps and case.

Features

• Three dovetail positioning mounts work with most existing test indicator accessories

• Precision gear-driven design with smooth, jeweled movement

• Contact point reverses automatically, always maintaining clockwise hand rotation

• Contacts are frictionally adjustable and replaceable

• Meets or exceeds ANSI/ASME accuracy specifications

• High contrast, easy-to-read dials with a white background on inch reading and a yellow background on millimeter reading indicators

• Narrow body for in reach ability

• Satin chrome finish for durability


Specifications

• Range (mm): 0.8mm

• Graduations (mm): 0.01mm

• Dial Reading: 0-40-0

• Attachments: 4mm contact point, 9.5mm & 4mm dovetail clamps & case

• Dial Color: Yellow 32mm Diameter


See all Starrett 3808, 3809, 3908 and 3909 Dial Test Indicators
