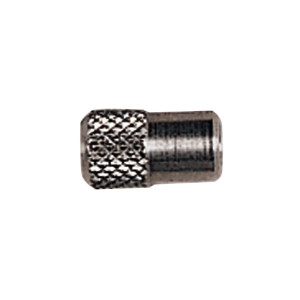

Starrett Contact Point and Adaptor for 196, EDP 50711 - 196R

Brand:   Starrett
SKU:
196R
ID:
363658
callling
$11.95
Current Stock:
Adding to cart… The item has been added

Starrett

Starrett Contact Point and Adaptor for 196, EDP 50711 - 196R

The Starrett 196 Universal Back Plunger Dial Indicator features graduations to .001" and 0.02mm that handle by far the majority of jobs. Shank diameter is 1/4" (6.3mm). Antimagnetic models are also available - (inch reading) 196A6Z and 196B6. For full use, the operator first chooses the proper contact from the three hardened contact points that come with each model. Then the contact should be brought against the work with enough pressure to give the hand one full turn. Set the hand at zero by rotating the dial with the knurled bezel. This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation. Contact Point Adapter This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation.

Features

  • Accurate and reliable
  • Simple to operate
  • Rugged, with few moving parts
  • Smooth in operation
  • Download 2-Dimensional drawing here

Specifications

  • Made in America: Yes

See all Starrett 196, 196M Universal Back Plunger Dial Indicators


Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.
