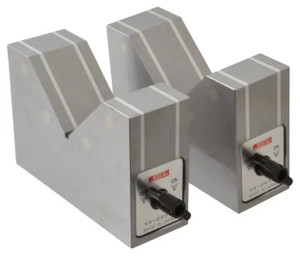

SPI Magnetic V-Blocks (Matched Pair) with On and Off Switch - 98-285-0
Brand: SPI Swiss Precision Instruments- SKU:
- 98-285-0
- ID:
- 88064
$1,095.00
SPI Magnetic V-Blocks (Matched Pair) with On and Off Switch
Sold in Sets (Matched Pair)
90mm Max Capacity, 90° Angle, V-Block
150mm Long x 50mm Wide x 100mm High, Sold as Matched Pair
Applications:
- Holding tools for marking and drilling
- Holding tools for EDM and wire cutting machines
- Holding tools for three dimensional measuring instruments and various measuring systems
Features:
- Lightweight design for easy handling
- Workpiece can be held on top (V face), front and rear face
- Magnetic force can be turned On or Off
- Waterproof and oil proof construction
Specifications:
| Type | V-Block |
| Sold As | Matched Pair |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Width (mm) | 50.00 |
| Overall Width (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 100.00 |
| Overall Height (Decimal Inch) | 3.9300; 3.9380 |
| V Angle | 90.00 |
| Maximum Capacity of V (mm) | 90.00 |
| Maximum Capacity of V (Decimal Inch) | 3.5433 |
| Magnetic | Yes |
