SPI Dial Test Indicators & Sets, Horizontal and Vertical
Brand: SPI Swiss Precision Instruments- ID:
- 326340

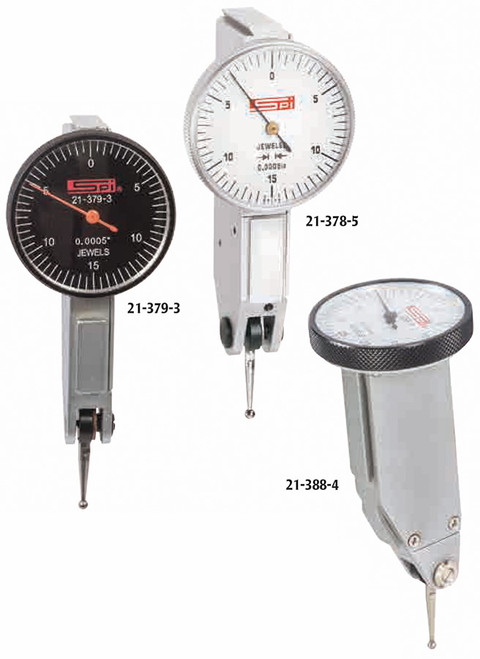

SPI Dial Test Indicators & Sets, Horizontal and Vertical
- Universal positioning capability
- Fully jeweled movement
- Easy to read dial
- Satin chrome finish
- Contact point: 0.080" dia.
- Contact point pivot: ±100 degrees
- Dovetail stems: 5/32" (8 mm) and 3/8" (6 mm) dia.
- Short Form Certificate of Calibration included
- Furnished in fitted case
Sets Include:
- Indicator
- 2 contact points
- Universal clamp
- Height gage bar
- 5/32" and 3/8" dia. Dovetail extensions
- Fitted case
For more info, visit www.p65warnings.ca.gov.
| Item Number | Description | Price | Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 21-501-2 | Dial Test Indicator Set | Horizontal Set | 0.008" | 0.0001" | 0-4-0 | 1-1/4" | White | $ 229.95 | |
| 21-502-0 | Dial Test Indicator Set | Horizontal Set | 0.02" | 0.0005" | 0-10-0 | 1-1/4" | White | $ 199.95 | |
| 21-503-8 | Dial Test Indicator Set | Horizontal Set | 0.03" | 0.0005" | 0-15-0 | 1-1/4" | White | $ 149.95 | |
| 21-504-6 | Dial Test Indicator Set | Horizontal Set | 0.03" | 0.0005" | 0-15-0 | 1-1/4" | Black | $ 149.95 | |
| 21-505-3 | Dial Test Indicator Set | Horizontal Set | 0.2 mm | 0.002 mm | 0-100-0 | 32 mm | White | $ 229.95 | |
| 21-506-1 | Dial Test Indicator Set | Horizontal Set | 0.5 mm | 0.01 mm | 0-25-0 | 32 mm | White | $ 209.95 | |
| 21-507-9 | Dial Test Indicator Set | Horizontal Set | 0.8 mm | 0.01 mm | 0-40-0 | 32 mm | White | $ 169.95 | |
| 21-508-7 | Dial Test Indicator Set | Horizontal Set | 1.0 mm | 0.01 mm | 0-50-0 | 32 mm | White | $ 209.95 | |
| 21-376-9 | Dial Test Indicator | Horizontal | 0.008" | 0.0001" | 0-4-0 | 1-1/4" | White | $ 159.95 | |
| 21-377-7 | Dial Test Indicator | Horizontal | 0.02" | 0.0005" | 0-10-0 | 1-1/4" | White | $ 129.95 | |
| 21-378-5 | Dial Test Indicator | Horizontal | 0.03" | 0.0005" | 0-15-0 | 1-1/4" | White | $ 119.95 | |
| 21-379-3 | Dial Test Indicator | Horizontal | 0.03" | 0.0005" | 0-15-0 | 1-1/4" | Black | $ 119.95 | |
| 21-380-1 | Dial Test Indicator | Horizontal | 0.2 mm | 0.002 mm | 0-100-0 | 32 mm | White | $ 159.95 | |
| 21-381-9 | Dial Test Indicator | Horizontal | 0.5 mm | 0.01 mm | 0-25-0 | 32 mm | White | $ 149.95 | |
| 21-382-7 | Dial Test Indicator | Horizontal | 0.8 mm | 0.01 mm | 0-40-0 | 32 mm | White | $ 119.95 | |
| 21-383-5 | Dial Test Indicator | Horizontal | 1.0 mm | 0.01 mm | 0-50-0 | 32 mm | White | $ 149.95 | |
| 21-384-3 | Dial Test Indicator | Vertical | 0.008" | 0.0001" | 0-4-0 | 1-1/4" | White | $ 179.95 | |
| 21-385-0 | Dial Test Indicator | Vertical | 0.02" | 0.0005" | 0-10-0 | 1-1/4" | White | $ 149.95 | |
| 21-386-8 | Dial Test Indicator | Vertical | 0.03" | 0.0005" | 0-15-0 | 1-1/4" | White | $ 119.95 | |
| 21-387-6 | Dial Test Indicator | Vertical | 0.2 mm | 0.002 mm | 0-100-0 | 32 mm | White | $ 179.95 | |
| 21-388-4 | Dial Test Indicator | Vertical | 0.5 mm | 0.01 mm | 0-25-0 | 32 mm | White | $ 149.95 | |
| 21-389-2 | Dial Test Indicator | Vertical | 0.8 mm | 0.01 mm | 0-40-0 | 32 mm | White | $ 119.95 |
