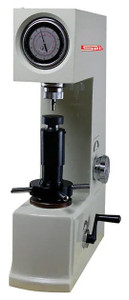

SPI Dial Rockwell Scale Hardness Tester, Rockwell & Superficial Rockwell - 21-315-7
Brand: SPI Swiss Precision Instruments- SKU:
- 21-315-7
- ID:
- 355282
$6,495.00
SPI Dial Rockwell Scale Hardness Tester, Rockwell & Superficial Rockwell - 21-315-7
Rockwell & Superficial Rockwell Bench Top Hardness Tester
Easy to operate, yet engineered to obtain highly sensitive and accurate readings. A rugged performer suited for almost any environment, including heat treat facilities, tool rooms, workshops, laboratories and inspection labs.
- Certificate of Calibration traceable to NIST included
- 5 Year warranty
Specifications:
| Item Number | 21-315-7 |
| Scale Type | Superficial Rockwell |
| Minimum Hardness | 2.6 HR45T |
| Maximum Hardness | 70 HRC |
| Display Type | Analog |
| Resolution (HRC) | 1.00 |
| Preset Load | 3 kgF, 10 kgF |
| Full Load | 15 kgF, 30 kgF, 45 kgF, 60 kgF, 100 kgF, 150 kgF |
| Test Force Control | Manual |
| Vertical Capacity | 6.00" |
| Throat Depth | 5.50" |
| Dimensions | 26" H x 18.2" W x 9.4" D |
| Weight | 250 lbs. |
| Diamond Indentor | Conical |
| Ball Indentor | 1/16" |
| Test Blocks | (2) HRC, (1) HRB, (1) HR15N, (1) HR30N, (1) HR45T |
| Test Table | 5.87" |
| Anvils | 2.5" Flat, Std. Vee |
