Sopko Wheel Balancing Stands

Sopko Wheel Balancing Stands

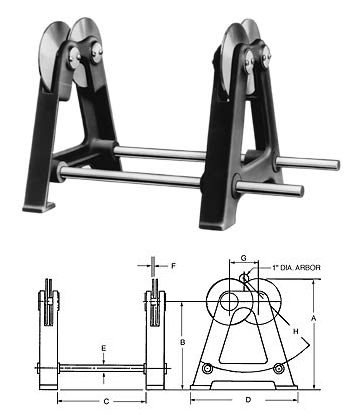

Balance grinding wheels without leveling or centering by mounting on the four flame-hardened iron discs supported by super-sensitive bearings. In a fraction of the time needed for trial and error methods, you prove balance or detect out-of-balance conditions. Revolving iron discs and their spindles are ground and polished for extreme accuracy. Spindles and bushings are hardened to eliminate the possibility of wear or ball-bearing indentation on spindles or bushings when heavy grinding wheels are being balanced.

Features:

• PORTABLE AND ADJUSTABLE.
• EXTEND GRINDING WHEEL LIFE.
• EASY TO OPERATE.
• LOW INVESTMENT.
• FOR 20" TO 96" DIAMETER WHEELS.
• SUPER-SENSITIVE BEARINGS.
• GROUND AND POLISHED REVOLVING DISCS.
• 1,000 TO 20,000 POUND CAPACITY.

Models:

• 01308 - Wheel Balancing Stand 6-11/16"
• 01148 - Wheel Balancing Stand 7-5/16"
• 01506 - Wheel Balancing Stand 9-1/2"
• 01706 - Wheel Balancing Stand 10-1/2"
• 01218 - Wheel Balancing Stand 12-7/16"
• 01899 - Wheel Balancing Stand 14"
• 01031 - Wheel Balancing Stand 24"
• 01627 - Wheel Balancing Stand 39"
• 01934 - Wheel Balancing Stand 51-7/8"

For Sopko Portable Static Wheel Balancing Kits Click Here
