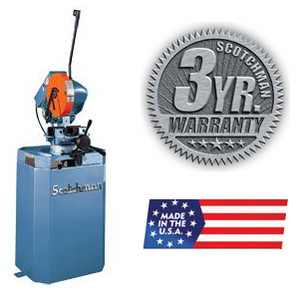

Scotchman Manual Saw CPO275

Brand:   Scotchman
ID:
107951
callling
Current Stock:
Scotchman Manual Saw CPO275
Standard Features
  • Manual Double Self-Centering Vise Assures Burr-Free Cuts
  • Miter Capabilities 45 degrees Left and 45 degrees Right
  • Miter Locking Device: quick, accurate setting-stops at 45 Degrees Left, Straight 90 Degrees, and 45 Degrees Right
  • Operator Controlled Trigger Switch
  • Capable of Slotting
  • Two Cutting Speeds
  • Hardened and Ground Worm and Wheel Gear Box
  • Worm Wheel of Top Quality Bronze
  • Chip Drawer
  • 7 Gallon Coolant Tank with Pump
  • One 10" Diameter (250 mm) HSS Blade
  • One Blade Wrench
  • One Gallon Concentrated Coolant
  • 230 or 460 Volt/3 Phase Electrics (must specify voltage)
  • Warranty: Three Years
  • Made in USA
  • For Optional Standard Tooling please Contact Us
Capacities & Specifications
Cutting Speeds Must Specify when Ordering
LT(Low Turn) designed for solid mild steel, solid stainless steel & thick wall pipe LT (Low Turn)
30 rpm / 60 rpm
Motor rate:
2.0 hp
HT(High Turn) designed for thin wall tube .060 wall thickness
or thinner and non-ferrous material
HT(High Turn)
60 rpm / 120 rpm
Motor rate:
1.5 hp
SS(Single Speed) designed for 220v 1 ph applications SS (Single Speed)
60 rpm
Motor rate:
2 hp
TUBING
Round
Square
Rectangle
90 Deg
3-3/8"
3" x 3"
3" x 2-3/8"
45 Deg
2"
2" x 2"
3" x 2"
SOLID
Round
Square
90 Deg
1-1/2"
1-1/2" x 1-1/2"
45 Deg
1"
1" x 1"
Factory Wired





Specify
208 3 ph
230 3 ph
460 3 ph
575 volt, 3 ph 60 hz
220 1 ph (SS Model Only)

Maximum Diameter Blade 10-3/4" 275 mm
Arbor Bore 1-1/4" 32 mm
Pin Spacing 2/8/45
Width 21-7/8"
Depth 43-1/2"
Height not including handle 53-1/4"
Height from floor to vise 36-1/8"
Shipping Weight 600 lbs.

Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

Item Number Description Price Quantity
CPO275LT Manual Saw - Low Turn $ 9,995.00
CPO275HT Manual Saw - High Turn $ 9,995.00
CPO275SS Manual Saw - Single Speed $ 9,995.00
