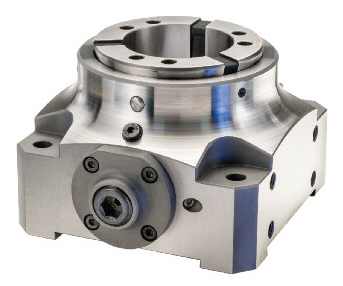

Royal Quick-Grip Manual Collet Fixture for 4th & 5th Axis Applications, Model QG-42 - 43900-1
Brand: Royal Products- SKU:
- 43900-1
- ID:
- 346910
$4,495.00
Royal Quick-Grip Manual Collet Fixture for 4th & 5th Axis Applications, Model QG-42 - 43900
Features:
- Unit is actuated via a hybrid mechanical/hydraulic mechanism.
- Can be used in both stationary and rotary table applications. Caution – not for use on lathes or grinders above 5 rpm!
- Many of the same great features as our Quick-Grip™ CNC Collet Chucks, including ten-second collet changes and parallel-grip collets with a full .062" clamping range.
- Pullback design with an internally threaded back plate enables the use of a stop rod.
- Bottom and all four sides are ground for both vertical and horizontal mounting.
- Ideal for high production 4th and 5th axis applications.
- For use with Royal Quick-Grip™ collets.
Specifications:
| Item Number | Model | Capacity | A | B | C | D | E |
| 43900 | QG-42 | 1.66 | 3.94 | 5.12 | 3.94 | 3.94 | 0.43 |
See all Royal Quick-Grip Manual Collet Fixtures for 4th & 5th Axis Applications
