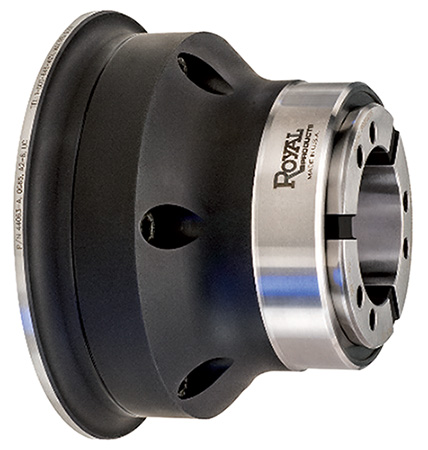

Royal Quick-Grip™ Accu-Length™ CNC Collet Chuck, QG-42 Collet, A2-6 Spindle, Ultra-Compact Style - 46110
Brand: Royal Products- SKU:
- 46110
- ID:
- 347396
Collet Type | QG-42 |
Spindle Type | A2-6 |
Chuck Style | Ultra-Compact |
Overall Length | 4.45" |
Weight | 21 lbs. |
$4,295.00
Royal Quick-Grip™ Accu-Length™ CNC Collet Chuck
QG-42 Collet, A2-6 Spindle, Ultra-Compact Style
46110
The Most Advanced Collet Chucks Available for Today's CNC Lathes
Accu-Length™
- Our best-selling model
- Fixed-position collet maintains precise z-axis part positioning – critical for secondary operations
- Usually the best choice for main spindles, and always required for sub-spindles to ensure proper part transfer
Features:
- Most compact chucks in the industry
- 10 second collet changes slash setup times
- Industry-Leading collet gripping range (0.062")
- Extreme grip force = most aggressive chip removal rates and fastest cycle times
- Ultra-precision accuracy – 0.0002" TIR guaranteed
- Parallel workpiece gripping
- Maximum rigidity produces superior part finishes
- Best tool clearance – critical for live tooling
- Exclusive royal risk-free performance guarantee
- Compact and ultra-compact models to suit all machines and applications
Bolt & Go™
- Our exclusive Bolt & Go™ mounting feature is standard on all Royal Quick-Grip™ Collet Chuck models. Bolt & Go™ enables chucks to be mounted very quickly and ensures maximum accuracy and rigidity.
Extremely Fast Collet Changes
- Changing collets on a Royal Quick-Grip™ CNC Collet Chuck takes just a few seconds. A unique hook and groove design for securing collets is used instead of traditional threads.
Wide Gripping Range
- Royal Quick-Grip™ Collets have a 0.062" gripping range (+/- 0.031"), enabling them to accommodate undersized and oversized bar stock.
Completely Sealed
- Lubricated for life, these chucks incorporate multiple O-ring seals to keep contaminants out and prevent chip pack-up on bore-thru applications.
High Accuracy
- Royal Quick-Grip™ CNC Collet Chucks are very accurate – runout on the closing angle is guaranteed to be within 0.0002" TIR.
High RPM
- All Royal Quick-Grip™ Collet Chucks are balanced by design for high-speed operation, and can often be run at higher speeds than conventional 3-jaw chucks because they are less affected by centrifugal force.
Low-Profile
- Royal Quick-Grip™ CNC Collet Chucks have smaller nose diameters than other quick change collet chucks for superior tool clearance.
Collet Compatibility
- Royal Quick-Grip™ Collet Chucks can sometimes utilize other brands of quick-change collets. Call Royal to verify.
Heavy-Duty Construction
- All chuck components, except for the drawtube connector, are hardened to Rc 61-63 for high rigidity and durability.
Coolant Slinger
- All bodies incorporate an oversized flange to protect the machine tool spindle bearings from coolant penetration.
Shortest Length
- Royal Quick-Grip™ CNC Collet Chucks are among the shortest chucks available, providing maximum work envelope utilization. This is especially important for smaller machines with limited z-axis travel.
Easy Installation
- Royal Quick-Grip™ Collet Chucks include all mounting hardware, mounting wrenches, and a custom-machined drawtube connector to ensure hassle-free installation.
Dead-Length Operation

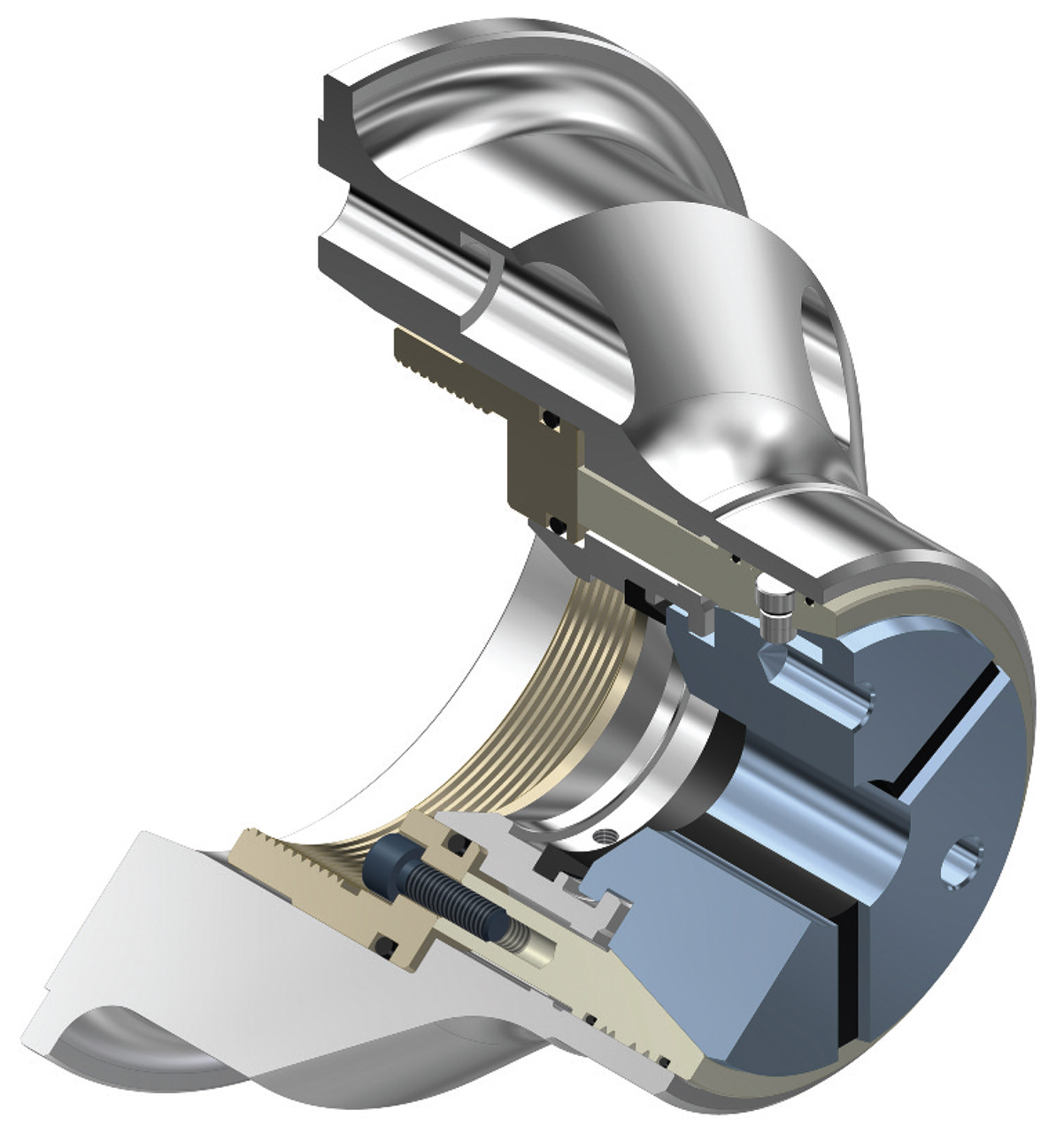

- Royal Quick-Grip™ Accu-Length™ CNC Collet Chucks incorporate dead length operation to eliminate part pullback. With this design, the collet is held stationary in the chuck body and a tapered sleeve pushes forward to compress it, resulting in precise z-axis workpiece positioning.
Click to View More Information & Benefits
Specifications:
Item Number | 46110 |
Collet Type | QG-42 |
Spindle Type | A2-6 |
Chuck Style | Ultra-Compact |
Max. Capacity - Bar | 1.66" |
Max. Capacity - Slug | 2.62" |

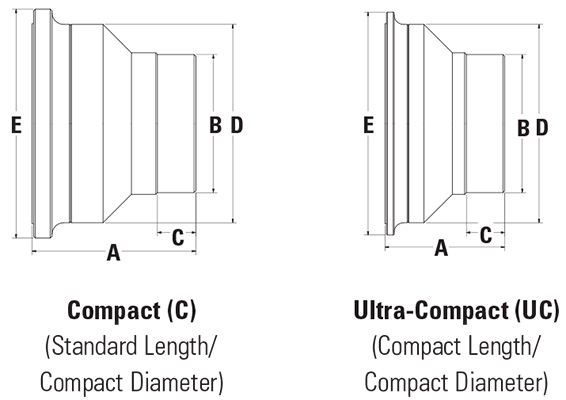

A - Overall Length | 4.45" |
B - Nose Diameter | 4.00" |
C - Nose Length | 0.75" |
D - Body Diameter | 6.20" |
E - Flange Diameter | 7.25" |
Chuck Weight | 21 lbs. |
Max. Drawbar Force | 7,865 lbs. |
Max. Clamping Force | 17,980 lbs. |
Max. RPM | 6,000 |
Price includes drawtube connector.
Collets and installation tool sold separately.
Slug capacity requires counterboring of collets.
