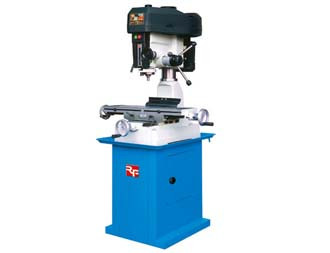

Rong Fu Milling/Drilling Machines R-8 Spindle
- UL listed electronics
- Extra large worktable
- Hinged belt cover allows faster speed changing
- Forward and reversing switch
- R-8 spindle taper
- Positive and easy to read internal depth gauge
- Magnetic contractors
- Supplied with face mill,drill press vise and chuck
Specifications:
| Model | RF-31 - RF-31-C | RF-31 |
| Drilling Capacity: | 1-1/4" | 1-1/4" |
| Face Mill Capacity: | 3" | 3" |
| End Mill Capacity: | 3/4" | 3/4" |
| Swing: | 16-3/8" | 16-3/8" |
| Nose to Table: | 18" | 18" |
| Spindle: | R-8 | R-8 |
| Spindle Travel: | 5" | 5" |
| Quill Diameter: | 3" | 3" |
| Head Swivel: | 360° | 360° |
| Column Diameter: | 4-1/2" | 4-1/2" |
| Number of Spindle Speeds: | 12 | 24 |
| Speed: | Single Speed | 2-Speed |
| Range of Spindle Speeds (RPM) | 150-3000 | 150-3000 |
| Maximum Table Travel: | 19-3/4" | 19-3/4" |
| Cross Travel: | 7" | 7" |
| Working Surface of Table: | 8-1/4"x28-3/4" | 8-1/4"x28-3/4" |
| T-Slot Size | 5/8" | 5/8" |
| Overall Dimensions: | 42-1/2"Lx39-3/4"W | 42-1/2Lx39-3/4W |
| Base Dimensions: | 15-3/4" x 23-3/4" | 15-3/4" x 23-3/4" |
| Net Weight: | 660 lbs. | 660 lbs. |
Click to see the Cabinet Stand with Tray
