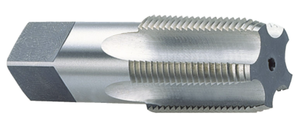

Regal High Speed Steel NPT Taper Pipe Taps
Regal High Speed Steel NPT Taper Pipe TapsRegal High Speed Steel NPT Taper Pipe Taps

Regal High Speed Steel NPT Taper Pipe Taps

Brand:   Regal Cutting Tools
ID:
595148
callling
Current Stock:

Regal Cutting Tools

Regal High Speed Steel NPT Taper Pipe Taps

  • American Standard Taper Pipe Threads.
  • H.S.S. - High Speed Steel.
  • The high-speed steel tool material and grounded threads ensure superior performance at high speeds.
  • Hardness: 58 to 60 RC
  • Bright Finish.
  • Ground Thread.
  • Straight Flute.
  • NPT pipe taps have a tapered male and female thread and act as both the mechanical joint and the hydraulic seal.
  • NPT taps produce threads that require sealant when joined to an external NPT threaded part.
  • The square shank is provided to fit well into tap wrenches.
  • The threads are formed in the right-hand (clockwise) cutting direction.
  • Workpiece Material Range: Steel, Non-Ferrous, Cast Iron, Plastics
Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.

Item Number DescriptionThread LengthShank DiameterOverall Length Price Quantity
12-009-001 Regal H.S.S. NPT 4 Flute Taper Pipe Tap, 1/16"-27 Thread Size 11/16" .3125" 2-1/8" yes $ 37.95
12-009-004 Regal H.S.S. NPT 4 Flute Taper Pipe Tap, 1/8"-27 Thread Size 3/4" .3125"(SS) 2-1/8" yes $ 38.95
12-009-007 Regal H.S.S. NPT 4 Flute Taper Pipe Tap, 1/8"-27 Thread Size 3/4" .4375"(LS) 2-1/8" yes $ 38.95
12-009-010 Regal H.S.S. NPT 4 Flute Taper Pipe Tap, 1/4"-18 Thread Size 1-1/16" .5625" 2-7/16" yes $ 42.95
12-009-013 Regal H.S.S. NPT 4 Flute Taper Pipe Tap, 3/8"-18 Thread Size 1-1/16" .7000" 2-9/16" yes $ 55.95
12-009-016 Regal H.S.S. NPT 4 Flute Taper Pipe Tap, 1/2"-14 Thread Size 1-3/8" .6875" 3-1/8" yes $ 88.95
12-009-019 Regal H.S.S. NPT 5 Flute Taper Pipe Tap, 3/4"-14 Thread Size 1-3/8" .9063" 3-1/4" yes $ 122.95
12-009-022 Regal H.S.S. NPT 5 Flute Taper Pipe Tap, 1"-11-1/2 Thread Size 1-3/4" 1.1250" 3-3/4" yes $ 187.95
12-009-025 Regal H.S.S. NPT 5 Flute Taper Pipe Tap, 1-1/4"-11-1/2 Thread Size 1-3/4" 1.3125" 4" yes $ 265.95
12-009-028 Regal H.S.S. NPT 7 Flute Taper Pipe Tap, 1-1/2"-11-1/2 Thread Size 1-3/4" 1.5000" 4-1/4" yes $ 357.95
12-009-031 Regal H.S.S. NPT 7 Flute Taper Pipe Tap, 2"-11-1/2 Thread Size 1-3/4" 1.8750" 4-1/2" yes $ 484.95
