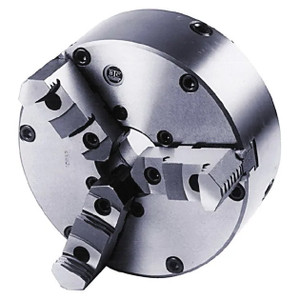

QU Industrial Zero Set 3-Jaw Self-Centering Plain Back Scroll Lathe Chuck 1103R, 10" dia. - 34-698-1
Brand: QU Industrial- SKU:
- 34-698-1
- ID:
- 107319
| Model | 1103R |
| Chuck Diameter | 10" |
| Thru Hole Diameter | 2.835" |
| Weight | 86 lbs. |
$1,649.43
QU Industrial Zero Set 3-Jaw Self-Centering Plain Back Scroll Lathe Chuck 1103R, 10" dia.
3 Jaws, 10" Diam, Self Centering Manual Lathe Chuck
Plain Back Mount Spindle, Adjustable, Reversible, 2,700 Max RPM, 2.835" Through Hole Diam, Cast Iron
Semi-Steel Body
- Chucks set to "zero" with use of fine adjustment screws
- 0.0005" T.I.R. repeatability on duplicate parts
- Scroll and jaws made of high alloy steel
- 2 piece reversible jaws are hardened and precision ground
Standard Accessories:
- 1 set of two-piece hardened reversible jaws
- 1 chuck wrench
- 1 set of mounting screws
Requires Chuck Adapter
Specifications:
| Manufacturer Part # | 1103R |
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 10 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 2.8350 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Number of Jaw Pieces | Two-Piece |
| Chuck Diameter (mm) | 254.00 |
| Chuck Diameter (Inch) | 10 |
| Minimum Jaw Capacity (Decimal Inch) | 0.5000 (External); 2.9370 (Internal) |
| Maximum Jaw Capacity (Decimal Inch) | 8.7180 (Internal); 9.3600 (External) |
| Adjustable | Yes |
| Jaw Type | Master Jaws; Top Jaws |
| TIR Repeatability (Decimal Inch) | 0.0005 |
| Body Length (Decimal Inch) | 3.4920 |
| Maximum RPM | 2700 |
| Includes | Hardened Self-Centering Chuck; Master Jaws & Top Jaws; Mounting Screws; T-Wrench |
See all QU Industrial Zero Set 3 & 6-Jaw Self-Centering Plain Back Scroll Lathe Chucks
