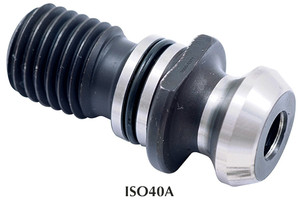

Precise Retention Knobs - Style 5
- Coolant Thru
- Heat treated alloy steel.
- ISO All dimensions in accordance to ISO/DIS7388/2-1984A specifications.
- BT All dimensions in accordance to ANSI specifications for CAT holders and MAS specifications for BT holders.
| Item No. | 3900-5371 | 3900-5398 |
| Thread T.P.I. | M16x2.0 | M24x3.0 |
| Knob Dia. D1 | 0.748"/19mm | 0.906"/23mm |
| Neck Dia. D2 | 0.551"/14mm | 0.669"/17mm |
| Hole Dia. D3 | 0.276"/7mm | 0.236"/6mm |
| Pilot Dia. D4 | 0.669"/17mm | 0.984"/25mm |
| Diameter D | 0.906"/23mm | 1.496"/38mm |
| OAL L | 1.752"/44.5mm | 3.346"/85mm |
| Shoulder L1 | 0.433"/11mm | 1.378"/35mm |
| Shoulder L2 | 1.181"/30mm | 3.937"/100mm |
