Precise Pro-Series ER-32 IP68 Stainless Steel EDM Dividing Fixture - 3903-1605
Brand: Precise- SKU:
- 3903-1605
- ID:
- 387456
$6,495.00
Precise Pro-Series ER-32 IP68 Stainless Steel EDM Dividing Fixture - 3903-1605
- IP68 Waterproof EDM dividing unit.
- Stainless steel heavy duty, rigid structure, built for longevity.
- Collet clamping range diameter is 2mm-34mm with 1mm steps.
- Made in Taiwan
- Dust-proof and water resistant.
- Made with high precision double bearings in the structure to achieve higher accuracy, rigidity and stability.
- Rapidly clamps the workpiece with no need to adjust the center accuracy.
- ER-32 collects included are 4, 8, 12, 16 & 20mm.
- Note: ER collets and nut are not stainless steel.

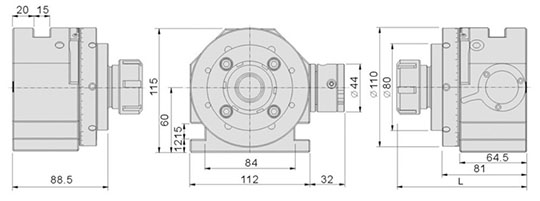

Specifications:
- Center Height: 60mm±0.5mm
- Indexer Tooth Quantity & Accuracy: 24, 15º ±5”
- Through Hole Diameter: 21mm
- Rotational Accuracy: 0.003mm
