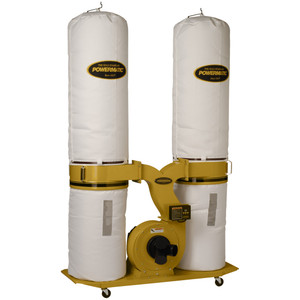

Powermatic PM1900TX-BK1 Dust Collector, 3 HP, 1-Phase, 230V, 30-Micron Bag Filter Kit - PM9-1792071K
Brand: Powermatic- SKU:
- PM9-1792071K
- ID:
- 335395
Powermatic PM1900TX-BK1 Dust Collector, 3 HP, 1-Phase, 230V, 30-Micron Bag Filter Kit - PM9-1792071K
The PM1900 Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive TurboCone™ improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bags. The canister filter offers over six times the filtering area of standard filter bags, collects 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Multiple connection port capability makes this machine a central dust collection system for the entire woodworking shop. Four swivel casters and conveniently located handles allow for easy mobility.
Features:
- 30-micron filter bags for improved capture of fine dust particles
- All-metal duct construction for rigidity and improved air flow
- Eliminates premature filter clogging for sustained performance
- Remote-controlled digital timer can be programmed for up to 99 minutes
- Cone eliminates premature filter clogging for sustained performance
- The steel impeller is powered by a 3HP motor for peak performance
- Triple 4" dust ports allow for several hoses to be attached at the same time
- TurboCone™ improves chip separation and collector bag packing efficiency
View the PM1900TX Instruction Manual
Specifications:
| Stock Number | PM9-1792071K |
| Model Number | PM1900TX-BK1 |
| 1-Hose Connection Diameter (In.) | 8 |
| 3-Hoses Connection Diameter (In.) | 4 |
| Air Flow (US Method) @ 4" (CFM) | 234 |
| Bag Diameter (In.) | 20 |
| Collection Bag Length (In.) | 30 |
| Efficiency (Micron) | 30 |
| Filter Bag/Canister Length (In.) | 48 |
| Gross Weight (Lbs) | 215 |
| Impeller Diameter (In.) | 14 |
| Impeller Fins | 7 |
| Impeller Material | Steel |
| Motor Amps | 15 |
| Motor Phase | 1 |
| Motor Power (HP) | 3 |
| Motor Voltage (V.) | 230 |
| Overall Dimensions (L x W x H) (In.) | 61 x 30 x 94 |
| Prewired Voltage (V.) | 230 |
| Recommended Circuit Size (Amps.) | 30 |
| Sound Rating (Db.) | 86-92 |
| Static Pressure (Wc.) | 12.15 |
| Style (Type) | Dust Collector |
| Warranty | 5 Year |
| Gross Weight | 215.0 |
| Net weight | 211.0 |
| Prop 65 | Cancer and Reproductive Harm |
For more info, visit www.p65warnings.ca.gov.
