Powermatic 64B Table Saw

Brand: Powermatic

SKU:

ID:: 758725

callling

Current Stock:

Powermatic 64B Table Saw

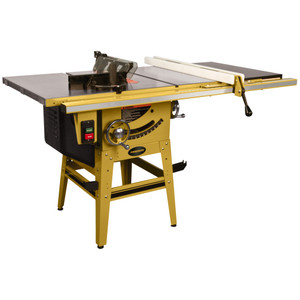

The 64B table saw, with left tilt arbor, offers 1-3/4 horsepower in dual voltage to meet the demands of the professional contractor. The transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. An arbor lock is accessed from above the table, eliminating the need for dual blade wrenches. The T-slot miter gauge has rack-and-pinion angle setting, positive stops and extension plate for expanded workpiece support. The 64B has cast iron table and wings with front edge bevel, and the working area is further expanded by the melamine-surfaced wood extension table. The exclusive Accu-Fence® system is available in 30" or 50" rip cut capacity. Storage hooks on the stand keep your accessories within reach.

Features:

Accu-Fence® locks to rail without play for increased safety and precision
Blade guard and riving knife have quick release for tool-less mounting and removal
Built-in dust port increases dust collection efficiency
Cast iron trunnion ensures smooth blade positioning
Chrome-trimmed handwheels are ergonomically designed
Micro-adjust miter gauge with extension plate offers wider crosscut support
Precision ground cast iron work surface features a beveled edge for smoother operation
Riving knife maintains close blade proximity to reduce chance of kickback

View the Instruction Manual

Specifications:

Stock Number	PM9-1791229K
Model Number	64B-30
Arbor Diameter (In.)	5/8
Arbor Speed (RPM)	3800
Blade Diameter (In.)	10
Dust Collection Minimum CFM Required (CFM)	350
Dust Port Outside Diameter (In.)	4
Gross Weight (Lbs)	304
Maximum Depth of Cut at 45 Degrees (In.)	2-1/8
Maximum Depth of Cut (In.)	2-1/8 or 3-1/8
Maximum Diameter of Dado (In.)	8
Maximum Rip Left of Blade (In.)	12
Maximum Rip Right of Blade (In.)	30
Maximum Width of Dado (In.)	13/16
Miter Gauge Type	T-Slot with Stops
Motor Amps	6
Motor Phase	1
Motor Power (HP)	1-3/4
Motor Voltage (V.)	115/230
Overall Dimensions (L x W x H) (In.)	71-1/4 x 43 x 42
Prewired Voltage (V.)	115
Recommended Circuit Size (Amps.)	20
Style (Type)	Contractor
Table Height from Floor (In.)	36
Table Size (L x W) (In.)	44-1/4 x 27
Table Type	Cast Iron
Warranty	5 Year
Gross Weight	421.85
Net weight	366.85
Prop 65	None

Stock Number	PM9-1791230K
Model Number	64B-50
Arbor Diameter (In.)	5/8
Arbor Speed (RPM)	3800
Blade Diameter (In.)	10
Dust Collection Minimum CFM Required (CFM)	350
Dust Port Outside Diameter (In.)	4
Gross Weight (Lbs)	304
Maximum Depth of Cut at 45 Degrees (In.)	2-1/8
Maximum Depth of Cut (In.)	2-1/8 or 3-1/8
Maximum Diameter of Dado (In.)	8
Maximum Rip Left of Blade (In.)	12
Maximum Rip Right of Blade (In.)	50
Maximum Width of Dado (In.)	13/16
Miter Gauge Type	T-Slot with Stops
Motor Amps	6
Motor Phase	1
Motor Power (HP)	1-3/4
Motor Voltage (V.)	115/230
Overall Dimensions (L x W x H) (In.)	79-5/8 x 43 x 42
Prewired Voltage (V.)	115
Recommended Circuit Size (Amps.)	20
Style (Type)	Contractor
Table Height from Floor (In.)	36
Table Size (L x W) (In.)	44-1/4 x 27
Table Type	Cast Iron
Warranty	5 Year
Gross Weight	470.0
Net weight	413.8
Prop 65	None

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.

Item Number	Description	Price
PM9-1791229K	Powermatic 64B Table Saw, 1.75 HP, 115/230V, 30" Fence with Riving Knife	$ 2,199.99
PM9-1791230K	Powermatic 64B Table Saw, 1.75 HP, 115/230V, 50" Fence with Riving Knife	$ 2,543.99
PM9-1791088	Dado Insert for 64B Table Saw	$ 89.99
PM9-2195075Z	Accu-Fence Assembly for 64B Table Saw	$ 582.99
PM9-2653045Z	30" Rail Set for 64B Table Saw	$ 275.99
PM9-2653046Z	50" Rail Set for 64B Table Saw	$ 329.99
PM9-6827036	Wood Extension Table, 27" x 17", for 64A, 64B Table Saws	$ 212.95
