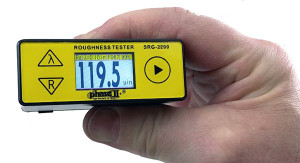

Phase II Mini Surface Roughness Tester - SRG-2200

Phase II Mini Surface Roughness Tester - SRG-2200

• The Phase II SRG-2200 Mini Surface Roughness Tester is a next generation of surface roughness tester developed by the Phase II Metrology Group that features high accuracy, a wide range of application, simple operation and stable performance. It is widely applicable in surface roughness testing all kinds of metals and non-metals.
• Large memory with data output via Bluetooth.
• The 1.14” IPS TFT display shows choice of surface roughness parameter Ra, Rz, Rq and Rt at the touch of a button, combined with the selected cutoff length. External calibration of the surface roughness value is possible by means of a built-in calibration feature which makes adjustment of this instrument very easy. Data output via Bluetooth makes saving surface roughness results fast and easy.
• The easy to use SRG-2200 surface roughness tester operates on various surfaces, not only flat but also outer cylinder, outer cone, grooves, and recesses greater than 80x 30mm. The areas of application are wide- spread. It is suitable for inspection departments, quality control, on the shop floor during machining, during assembly, and on site.
• The Phase II SRG-2200 surface roughness tester comes complete with a compact durable carrying case, surface roughness standard, data output software and instruction manual.

Specifications:

• Roughness parameter: Ra, Rms(Rq), (ISO), Rt, Rz (DIN) Measuring range: Ra: 0.05-10.0μm / Rz 0.1-50μm Rms: 0.05-10.0μm / Rt: 0.1-50μm
• Display Type: 1.14” IPS TFT
• Cut-off lengths: 0.01in., 0.03in., 0.10in (0.25, 0.80, 2.50mm) Filter: Gauss Digital
• Tracing length: 0.23in (6mm)
• Evaluation Length: 1.25mm, 4.0mm, 5.0mm
• Tracing speed: 0.04in/second (1.0mm/second)
• Accuracy: Within +/- 7% of actual value
• Pick-up stylus: Piezo-electric Tracer tip: Diamond, radius 10μm +- 2.5μm
• Memory / Transmission: 500 Values / Bluetooth
• Operating temperature: 32-104 degrees F (0-40 degrees C)
• Power: 1pc 1.5v AA Battery
• Contact force on probe: <0.5N Static measuring force of sensor stylus: <0.16N
• Dimensions: 73x28x62mm
