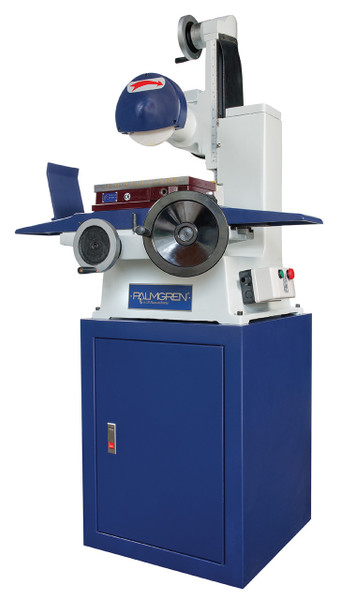

Palmgren 6" x 12" Bench Surface Grinder

Brand:   Palmgren a CH Hanson Company
ID:
318203
callling
Current Stock:

Palmgren

Palmgren 6" x 12" Bench Surface Grinder - 9682122


This economical 6” x 12” manual surface grinder has many features found on larger units and is a perfect choice for small shops, tool rooms and maintenance shops when close tolerances are needed. Bring mirror-like finishes to your metalworking projects with this professional grinder.


Features:

  • Meehanite cast iron construction- stress relieved to minimize vibration while maintaining rigidity and accuracy
  • Precision steel balls produce extremely smooth operation of table along the ways
  • Hand scraped ways
  • Spindle and motor are a direct drive design and are dynamically balanced minimum vibration
  • Swarf guard
  • Large easy to read dials
  • Spiral bevel gear for easy vertical movement of the spindle head
  • 9670109 Optional Steel Floor Stand


DIMENSIONS: 41" L x 28-3/4" W x 38-3/8" H



Specifications:

Item # 9682122
Horse Power 3/4 HP
Voltage 115
Phase 1
RPM 3600
Table Size 6" x 12"
T-Slot Size 1/2"
Max. Grinding Length 12-1/2"
Max. Grinding Width 6-11/16"
Table to Center of Spindle 11"
Wheel Size (Dia. X W x Bore) 7" x 1/2" x 1-1/4"
Vertical Feed Graduation 0.0005"
Cross Feed Graduation 0.001"
Coolant Pump No
Weight 450 lbs.

Optional Accessories:

9682130 Permanent magnetic chuck
9670109 Heavy duty steel floor stand

Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

Item Number Description Price Quantity
9682122 Palmgren 6" x 12" Bench Surface Grinder without Chuck $ 7,995.00
9682130 Permanent Magnetic Chuck $ 1,295.00
9670109 Heavy Duty Steel Floor Stand $ 829.40
