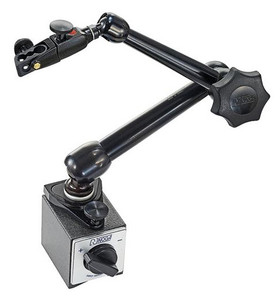

NOGA Indicator Holder with Double Fine Adjustment MG6161
Brand: Noga Engineering- SKU:
- 57-080-063
- ID:
- 326660
| Bottom Arm Length | 5.24" |
| Top Arm Length | 4.45" |
| Holding Power | 176 lbs. |
$249.95
NOGA Indicator Holder with Double Fine Adjustment MG6161
- Double fine adjustment.
- Bottom: unique single direction
- Top: universal swivel clamp
- Holds 6mm, 8mm, 3/8", dovetail and back lug.
- Unique central locking mechanism with Noga designed spring loaded bearing.
- Instantly fastens in any position.
- Fast and easy to set up gauges into required position.
- Aluminum material with black finished arms.
- 5 axis holder.
* Note: Indicator Not Included.
Specifications:
| BRAND | NOGA |
| MODEL # | MG6161 |
| BOTTOM ARM LENGTH | 5.24" |
| TOP ARM LENGTH | 4.45" |
| HOLDS STEM DIAMETER | 6mm, 8mm, 3/8", dovetail & back lug |
| HOLDING POWER | 176 lbs. |
| FINE ADJUSTMENT | Top & Bottom |
| TYPE | Articulating Arm |
| APPLICATION | Easy to set up gages into required position. |
| BASE DIMENSIONS | 1.97" x 2.36" x 2.17" |
| TOTAL ARM LENGTH | 9.69" |
| WEIGHT | 4.40 lbs. |
| COUNTRY OF ORIGIN | ISRAEL |
