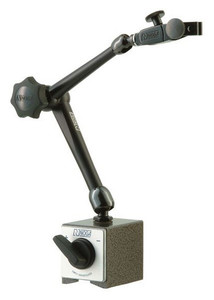

NOGA Dial Gage Holder Magnetic Bases
Benefits:
- It is an auxiliary tool for any general measurement and helps to increase precision and working efficiency.
- 3 dimensional dial gauge holder has Noga's unique central locking mechanism with spring loaded bearing for easy set-up.
Applications:
- Easy to set up gages into required position.
Features:
- Holds 3/8" and dovetail.
- Powerful 176 lbs. on/off magnetic base.
Specifications:
| BRAND | NOGA | NOGA |
| MODEL # | DG61003 | MG61003 |
| BOTTOM ARM LENGTH | 4.33" | 5.26" |
| TOP ARM LENGTH | 3.98" | 5.24" |
| HOLDS STEM DIAMETER | 6mm, 8mm, 3/8" & dovetail | 6mm, 8mm, 3/8" & dovetail |
| HOLDING POWER | 176 lbs. | 176 lbs. |
| FINE ADJUSTMENT | Top (Metal) | Top (Metal) |
| TYPE | Articulating Arm | |
| APPLICATION | Easy to set up gages into required position. | |
| DESCRIPTION | Regular Duty with Metal Fine Adjustment | Heavy Duty with Metal Fine Adjustment |
| WEIGHT | 2.9715 lbs. | 4.07 lbs. |
| COUNTRY OF ORIGIN | ISRAEL | |
| BRAND | NOGA | NOGA | NOGA |
| MODEL # | DG1033 | MG1033 | MG71003 |
| BOTTOM ARM LENGTH | 4.33" | 5.26" | 6.40" |
| TOP ARM LENGTH | 3.98" | 5.24" | 4.45" |
| HOLDS STEM DIAMETER | 3/8" & dovetail | 3/8" & dovetail | 6mm, 8mm, 3/8" & dovetail |
| HOLDING POWER | 176 lbs. | 176 lbs. | 176 lbs. |
| FINE ADJUSTMENT | Top (Plastic) | Top (Plastic) | Top (Metal) |
| TYPE | Articulating Arm | ||
| APPLICATION | Easy to set up gages into required position. | ||
| DESCRIPTION | Regular Duty with Plastic Fine Adjustment | Heavy Duty with Plastic Fine Adjustment | Regular Duty with Metal Fine Adjustment/ Universal Swivel Clamp |
| WEIGHT | 2.9715 lbs. | 4.07 lbs. | 3.95 lbs. |
| COUNTRY OF ORIGIN | ISRAEL | ||
