MPI Electromagnetic Transverse Fine Pole Surface Grinding Chucks
Brand: MPI Magnetic Products, Inc.- ID:
- 604792

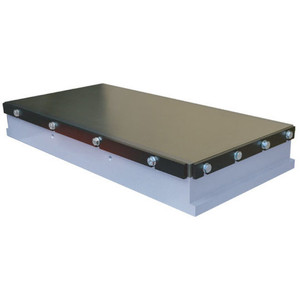

MPI Electromagnetic Transverse Fine Pole Surface Grinding Chucks
- Designed with firmly embedded coils
- Waterproof design
- Electromagnet is easily operated by pressing the button on the control unit which also ensures variable adjustment of the force to create the optimum conditions for clamping
- High nominal holding force
- Multi core magnetic system generates an efficient and uniform magnetic field over the entire surface of the chuck
- One (1) year warranty for the magnetic system
- Manufactured in Europe to the highest quality standards
- Included with Each Magnet: Side and rear stop blocks, set of clamps, and instructions for use
- Note: Control Unit sold separately
How It Works:
Efficient production is supported by easy operation using the control unit – just press the button or turn the switch to regulate the holding force for ideal conditions in industrial operation. The Electromagnetic Transverse Fine Pole Surface Grinding Chuck also allows automatic demagnetization so that no residual magnetism remains in the workpiece after unclamping.
The MPI Electromagnet Transverse Fine Pole Surface Grinding Chuck is used for efficient clamping of very small workpieces during precise surface grinding.
Important Parameters:
- Application: Grinding
- Technology: Electromagnet
- Chuck dimensions: from 6x10in
- Holding force: 110N/cm² / 159lbs/in²
- Min. workpiece size: 25mm x 25mm x 3mm / 1" x 1" x .12"
- Regrinding limit: 6 mm / .236"
- Pole pitch: T4mm – 3mm+1mm / T .160″ – .12"+.04" (steel/brass)
- Poles: Transverse
Additional Information:
- Side and rear stop blocks
- Set of clamps
Use:
- Clamping small and large workpieces during precise surface grinding
Electromagnetic Chuck Control Units:
- EMCU-150W - Electromagnetic Chuck Control Unit, 150 Watt Capacity
- EMCU-630W - Electromagnetic Chuck Control Unit, 630 Watt Capacity, with U19 Remote Control
Specifications:
| Item Number | Width | Length | Height | Weight | Recommended Control |
| EMTP-150250-SGC | 6" | 10" | 2.8" | 44.1 lbs. | EMCU-150W |
| EMTP-150300-SGC | 6" | 12" | 2.8" | 55.125 lbs. | EMCU-150W |
| EMTP-150350-SGC | 6" | 14" | 2.8" | 59.535 lbs. | EMCU-150W |
| EMTP-150400-SGC | 6" | 16" | 2.8" | 61.74 lbs. | EMCU-150W |
| EMTP-150450-SGC | 6" | 18" | 2.8" | 74.97 lbs. | EMCU-150W |
| EMTP-200400-SGC | 8" | 16" | 2.8" | 90.405 lbs. | EMCU-150W |
| EMTP-200450-SGC | 8" | 18" | 2.8" | 103.64 lbs. | EMCU-150W |
| EMTP-200500-SGC | 8" | 20" | 2.8" | 121.28 lbs. | EMCU-150W |
| EMTP-200600-SGC | 8" | 24" | 2.8" | 143.33 lbs. | EMCU-150W |
| EMTP-250500-SGC | 10" | 20" | 3" | 154.35 lbs. | EMCU-630W |
| EMTP-250600-SGC | 10" | 24" | 3" | 183.02 lbs. | EMCU-630W |
| EMTP-300600-SGC | 12" | 24" | 3" | 207.27 lbs. | EMCU-630W |
| EMTP-300700-SGC | 12" | 28" | 3" | 242.55 lbs. | EMCU-630W |
| EMTP-300800-SGC | 12" | 32" | 3" | 315.32 lbs. | EMCU-630W |
