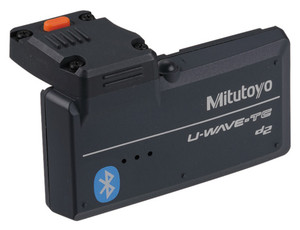

Mitutoyo U-WAVE Bluetooth Transmitter U-WAVE-TCB for Standard Calipers, Buzzer Type - 264-625
Brand: Mitutoyo- SKU:
- 264-625
- ID:
- 363431
Mitutoyo U-WAVE Bluetooth Transmitter U-WAVE-TCB for Standard Calipers, Buzzer Type - 264-625
The new U-Wave Bluetooth Transmitter utilizes the popular Bluetooth 4.2 Low Energy Wireless Technology. This new Bluetooth version of U-Wave allows a simple connection to smartphones, tablets and Bluetooth enabled Laptops and PC's. This new transmitter also features the same low profile and ergonomic benefits of the U-Wave Fit (Available models include IP67 and Buzzer types for 4", 6", 8" and 12" IP67 calipers, standard calipers and Coolant-Proof (IP65) micrometers.) New U-WavePak BM for Android and IOS and new U-WavePak BW for Windows are available at no additional cost.
The new U-Wave Bluetooth transmitter features:
- Now utilizes the popular Bluetooth 4.2 Low Energy Wireless Technology.
- This new Bluetooth version of U-Wave allows a simple connection to smartphones, tablets and Bluetooth enabled Laptops and PC’s.
- The same low profile and ergonomic fit benefits of the U-Wave Fit.
- A buzzer type and IP67 type with dustproof and waterproof specifications are available.
- Up to 7 units can be connected to 1 Bluetooth enabled PC without a receiver.
- New U-WavePak BLE for Android, iOS and Windows available at no cost.
Benefits of using U-Wave Bluetooth Wireless Data Collection System:
- No receiver required - Measurement data can be sent directly to a PC with Bluetooth®, Tablet or smartphone without a receiver.
- Cost reduction - Attach to the Digimatic output of an existing Mitutoyo instrument to keep the system costs down.
- Improved Efficiency - Input measurement data with one button. Eliminate the time and errors of handwritten recording.
- Centralized data - Electronic Collection enables data to be stored In one location allowing preventive management of defects.
- Easy data storage - Data can easily be sent to a smartphone or tablet allowing data to be collected in any environment.
Specifications & Comparison:
| U-Wave Bluetooth | U-Wave & U-Wave Fit | |
| Wireless communication protocol | Bluetooth 4.2 Low Energy | Based on IEEE 802. 15. 4 |
| Communication distance | Approx. 10 m (within visible range) | Approx. 20 m (within visible range) |
| Battery Life (CR2032) | 200,000 Transmissions with U-WavePak-BM 50,000 Transmissions with U-WavePak-BW | 400,000 Transmissions |
| Receiver Required | None | U-Wave-R |
| Data confirmation | LED or Buzzer (optional) | LED or Buzzer (optional) |
| Communcation frequency | 2.4 GHz | 2.4 GHz |
| OS compatibility | U-Wavepak-BW supports Windows® 10 (32bit, 64bit) U-WavePak-BM supports IOS and Android | U-WavePak supports Windows® 2000 Professional (≥SP4), Windows® XP Professional (≥SP2), Windows® XP Home Edition (≥SP2), Windows Vista®, Windows® 7 (32bit, 64bit), Windows® 8, 8.1, 10 (32bit, 64bit) |
View the Ordering Guide Chart
