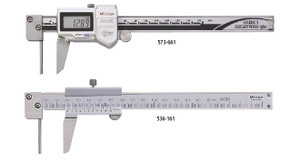

Mitutoyo Tube Thickness Caliper Series 573, 536 - ABSOLUTE Digimatic and Vernier Type

Mitutoyo Tube Thickness Caliper Series 573, 536 - ABSOLUTE Digimatic and Vernier Type

Features:

• The main scale jaw is a round bar that facilitates measurements of tube wall thickness.
• With SPC data output. (Series 573)
• Supplied in fitted plastic case.

Technical Data:

• Accuracy: Refer to the list of specifications. (excluding quantizing error for digital models)
• Display*: LCD
• Length standard: ABSOLUTE electrostatic capacitance type linear encoder
• Max. response speed*: Unlimited
• Battery*: SR44 (1 pc.), 938882
• Battery life*: Approx. 3.5 years under normal use

* Digital models ** Analog models

Function of Digital Model:

• Origin-set, Zero-setting, Power On/Off, Data output, inch/mm conversion (inch/mm models)
• Alarm: Low voltage, Counting value composition error

Optional Accessories for Digital Model:

• 05CZA624 - SPC cable with data switch (40" / 1m)
• 05CZA625 - SPC cable with data switch (80" / 2m)

For more details and Specifications on each item, copy the Item Number below into the search bar at the top of the page.
