Mitutoyo Profile Projector, Measuring Range XY=200x100 mm - PJ-P2010A - 302-802-10
Brand: Mitutoyo- SKU:
- 302-802-10
- ID:
- 688770
$14,900.00
Mitutoyo Profile Projector, Measuring Range XY=200x100 mm - PJ-P2010A - 302-802-10
The profile projector that “can be operated intuitively” even by inexperienced people and also has
excellent durability and energy-saving performance thanks to the adoption of an
“LED illumination source” and “fanless cooling system”.
It provides stable dimension and angle measurements in harsher environments, such as
manufacturing and processing lines, than can be handled by conventional models.

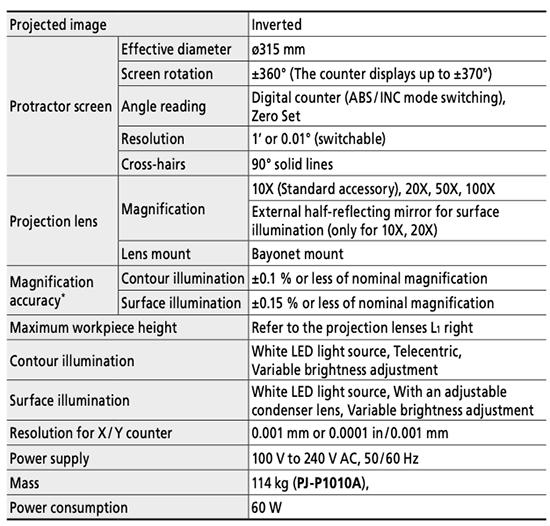

Specifications:
- Measuring range XY: 200 x 100 mm
- XY stage table top size: 350 x 280 mm
- XY stage effective area: 240 x 140 mm
- Stage glass No.: 12BAD760
- Max stage loading: 8 kg
