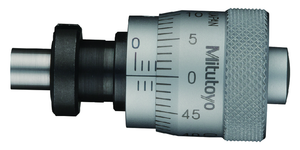

Mitutoyo Micrometer Head, Large Thimble Type, 0-6.5mm - 148-304
Brand: Mitutoyo- SKU:
- 148-304
- ID:
- 386225
| Range | 0 - 6.5 mm |
| Accuracy | ±2μm |
| Stem Dia. | 9.5mm |
| Stem | w/ clamp nut |
| Spindle Face | Flat |
| Thimble Dia. | 20mm |
$76.35
Mitutoyo Micrometer Head, Large Thimble Type, 0-6.5mm - 148-304
Short thimble type with thimble diameter options.
Specifications
| Range | 0 - 6.5 mm |
| Spindle end | Flat |
| Stem Ø | 9,5 mm |
| Stem | w/ clamp nut |
| Thimble Ø | 20 mm |
| Fixture thickness for clamp nut | 6 mm |
| Mass | 39 g |
| Measuring surfaces | Tool steel |
| Spindle pitch | 0,5 mm |
| Maximum Permissible Error J MPE | ±2 µm |
| Graduation | 0.01 mm |
| Digital/Analog | Analog |
| Inch-Metric | Metric |
| Special features | - |
See all Mitutoyo Micrometer Heads - Series 148 (Large Thimble Diameter for Easy Reading)
