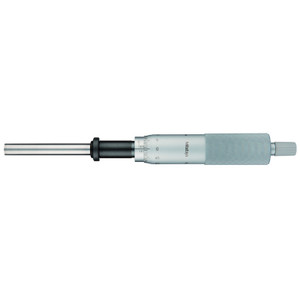

Mitutoyo Micrometer Head, Heavy Duty, 0-50mm - 151-255
Brand: Mitutoyo- SKU:
- 151-255
- ID:
- 386516
| Range | 0 - 50 mm |
| Accuracy | ±4μm |
| Stem Dia. | 12mm |
| Stem | w/ clamp nut |
| Spindle Face | Flat (carbide tip) |
| Remarks | - |
$199.00
Mitutoyo Micrometer Head, Heavy Duty, 0-50mm - 151-255
These micrometer heads are a medium-sized, standard type.
They offer the following benefits:
- 8 mm diameter spindle
- Extremely sturdy micrometer head with or without a ratchet.
Specifications
| Range | 0 - 50 mm |
| Spindle end | Flat (carbide tip) |
| Stem Ø | 12 mm |
| Stem | w/ clamp nut |
| Fixture thickness for clamp nut | 25.5 mm |
| Mass | 250 g |
| Measuring surfaces | Carbide-tipped |
| Spindle pitch | 0,5 mm |
| Maximum Permissible Error J MPE | ±4 µm |
| Graduation | 0.01 mm/ 0.001 mm |
| Digital/Analog | Analog |
| Inch-Metric | Metric |
| Special features | - |
See all Mitutoyo Micrometer Heads Series 151 — Common, Mid-Size w/8mm Dia. Spindle
