Mitutoyo ID-U Digimatic Electronic Indicator 575-123 - 10-948-8
Brand: Mitutoyo- SKU:
- 10-948-8
- ID:
- 110939
$221.10

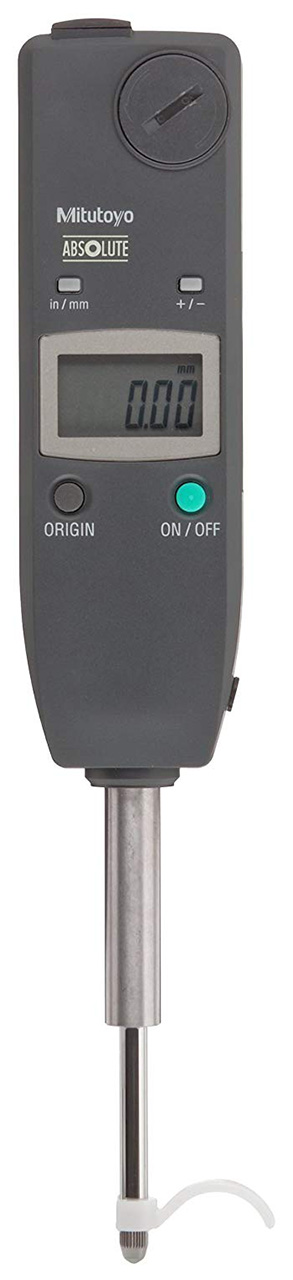

Mitutoyo ID-U Digimatic Electronic Indicator 575-123
Features:
- Data output port for connection to SPC systems
- Membrane sealed face helps keep out contaminants
- Absolute encoder
- Functions: On/Off button, origin setting, data output, ± direction changeover, error and low battery alarm, and inch/mm conversion (10-948-8)
- Measuring force: 1.8N or less
- Resolution: 0.0005"/0.01 mm
- Stem dia.: 3/8", metric 8 mm
- Protection Level: IP-42
- Flat back type only
- Power supply: one SR-44 battery
- Battery Life: 20,000 hours
- Operating temperature: 0°C - 40°C/32ºF - 104ºF
- Thread size: #4-48, metric 2.5 x .045
Specifications:
| Item Number | 10-948-8 |
| Mitutoyo Model Number | 575-123 |
| Type | Inch/Metric |
| Range | 0 - 1" / 0 - 25.4 mm |
| Resolution | 0.0005"/ 0.01 mm |
| Accuracy | 0.0008"/ 0.02 mm |
| Stem Diameter | 3/8" |
