Mitutoyo Display Unit for Linear Scale KA-200 COUNTER
Mitutoyo Display Unit for Linear Scale KA-200 COUNTERMitutoyo Display Unit for Linear Scale KA-200 COUNTERMitutoyo Display Unit for Linear Scale KA-200 COUNTER

Mitutoyo Display Unit for Linear Scale KA-200 COUNTER

Brand:   Mitutoyo
ID:
324166
callling
Current Stock:

Mitutoyo

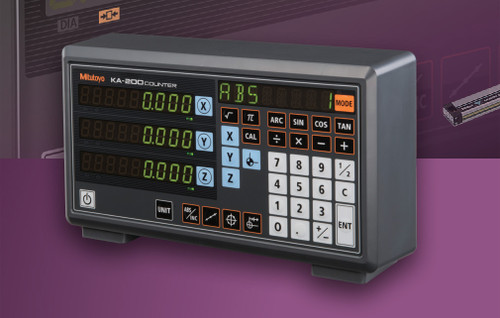

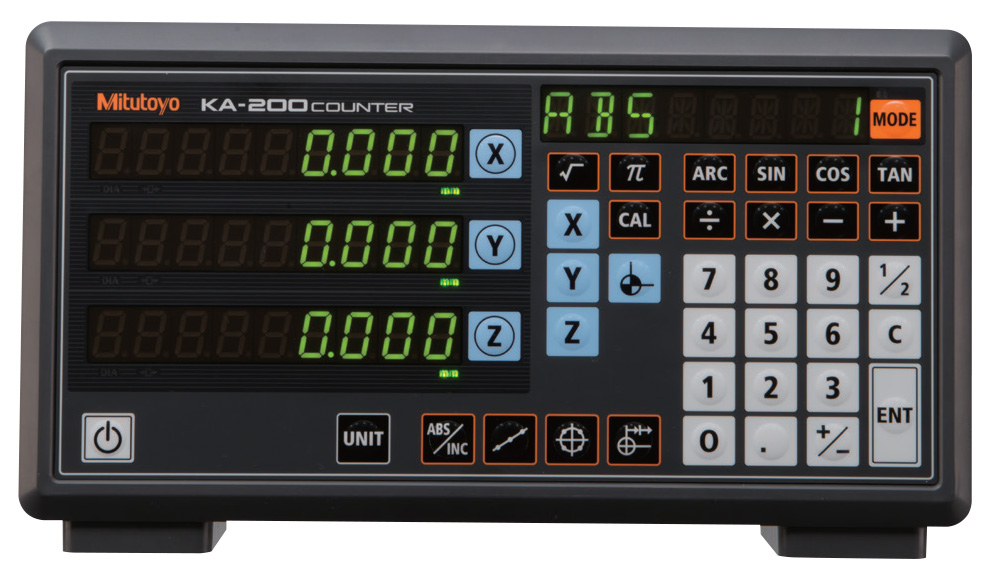

Mitutoyo Display Unit for Linear Scale KA-200 COUNTER

  • Absolute and incremental modes (10 presets each)
  • Non-linear and linear error compensation
  • Adjustable high-brightness, high-refresh rate LED displays
  • Calculator function
  • Outputs data into spreadsheets (optional USB card)


Standard Accessories:

  • Power cable
  • Ground lead
  • Dust cover
  • Alternate button labels for lathe mode
  • Connector cap (Dsub-15)
  • User’s manual
  • Warranty card


Specifications:


Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.

Item Number DescriptionApplication Price Quantity
174-183A Mitutoyo Display Unit for Linear Scale - 2-axis KA-212 COUNTER - $ 649.95
174-185A Mitutoyo Display Unit for Linear Scale - 3-axis KA-213 COUNTER - $ 952.00
06AET993 Code out unit - $ 285.00
06ACB393 Adapter for Linear gages with origin - $ 339.00
06ACB913 Adapter for Linear gages without origin - $ 339.00
06ACB391 Adapter for AT211 Linear Scales - $ 339.00
06ACB392 Adapter for ST Series - $ 339.00
09CAB231 Adapter for micrometer head - $ 153.00
09AAA207 Adapter for previous model 6 pin linear scales - $ 75.03
64AAB336 Foot switch to trigger RS-232C output (06AET993 needed) - $ 95.70
06ACF941 Extension cable for remote load & zero (06AET993 needed) - $ 218.00
965004 Foot switch to trigger RS-232C output (for 06ACF941 only) - $ 131.00
937328 External load box (06AET993 & 06ACF941 needed) - $ 242.00
936553 External zero box (06AET993 & 06ACF941 needed) - $ 284.00
09EAA094 Counter cable RS232C for DP-1VR - $ 340.00
64AAB519 RS232C output cable 6-ft. (25-9 pin) - $ 13.30
937179T Foot Switch LSM-6200/6900/9506 $ 95.80
