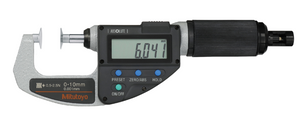

Mitutoyo Disc Micrometer QuickMike, IP65, 0-10mm - 227-223
Brand: Mitutoyo- SKU:
- 227-223
- ID:
- 366556
| Range | 0 - 10 mm |
| Accuracy | ±4μm |
$965.00
Mitutoyo Disc Micrometer QuickMike, IP65, 0-10mm - 227-223
The ABSOLUTE Digimatic Disc Micrometer Quickmike allows you to measure with a fast spindle feed of 10 mm/rev.
It offers you the following benefits:
- Suitable for measuring felt, rubber, cardboard, fabric etc.
- Suitable to measure "root tangent length" of spur gears and helical gears.
- With a non-rotating spindle and disc-shaped measuring surface.
- Measuring force is adjustable for various kinds of workpieces (series 227)
| Accuracy | ±4 µm |
| Flatness | 1 µm |
| Parallelism | 3 µm |
| Range | 0 - 10 mm |
| Digital step | 0,001 mm |
| Battery life | Approx. 5 years |
| Measuring surfaces | Hardened steel, micro-lap finish |
| Measurable module | 0.5-6 0.4-3 Series 227 |
| Measuring force accuracy | ±0.4 + (for setting/10) N |
| Measuring force settings | 2; 4; 6; 8; 10 N |
| Display | LCD, character height 10 mm |
| Delivered | Including box, setting standard (from 25 mm upward), 1 battery |
| HOLD | Yes |
| ORIGIN | Yes |
| ZERO/ABS | Yes |
| ON/OFF | Yes |
| Low voltage alarm | Yes |
| Data output | Yes |
| Digital/Analog | Digital |
| Inch-Metric | Metric |
| Measuring spindle | ø6,35 mm, non-rotating, 10 mm spindle feed |
| c: | 5.2 |
| e: | 18.8 |
| d: | 10 |
